Insulating Glazing Unit
What is 30mm Low E Laminated Tempered IGUs?

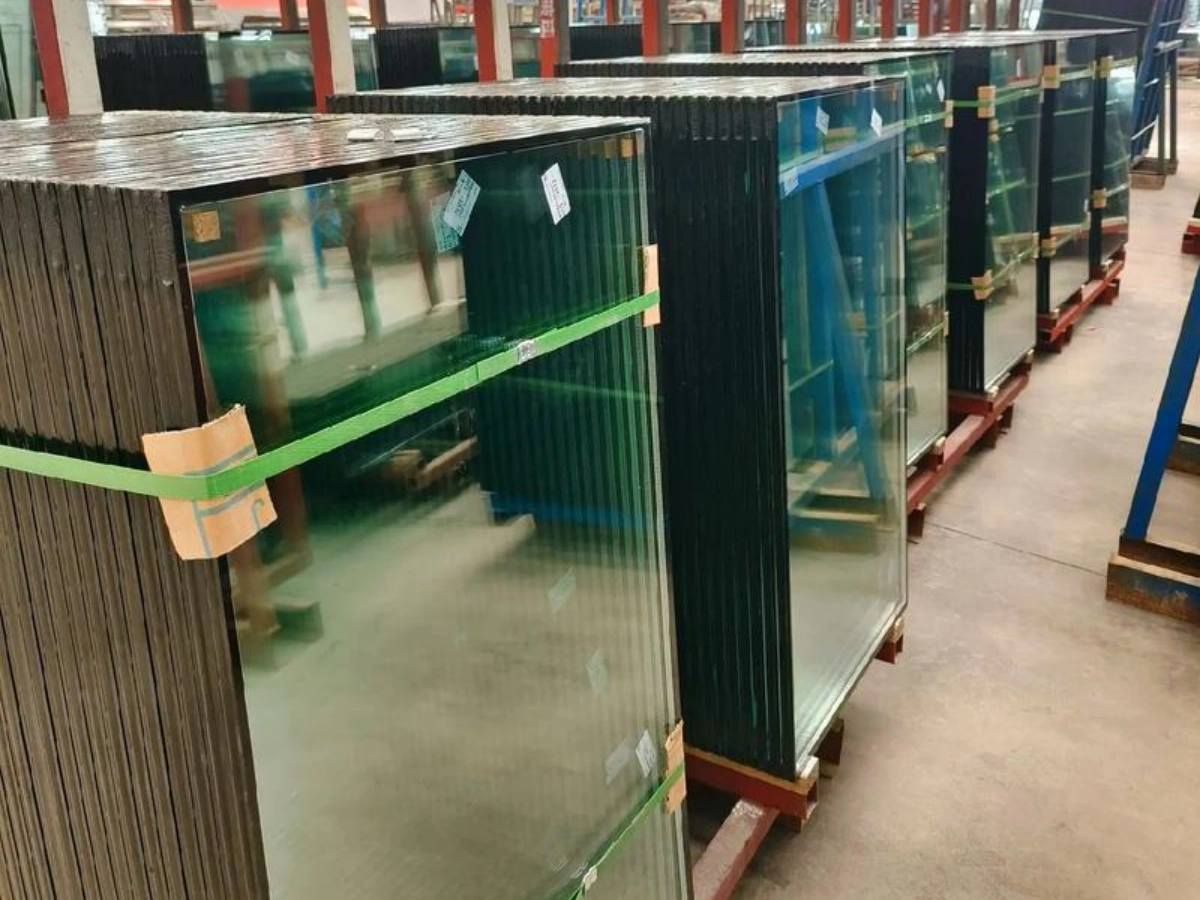

The Top Low E Laminated Tempered IGUs, also called Low E laminated harden IGU, which is engineered to deliver exceptional energy efficiency, solar control, and safety. Featuring a 6mm tempered outer pane, a 12A argon-filled spacer, and a 13.52mm tempered laminated inner pane, this 30mm insulated glazing system provides outstanding thermal insulation, UV filtering, and sound reduction.
Designed for modern architecture, it is ideal for high-performance façades, skylights, curtain walls, and premium residential or commercial projects.

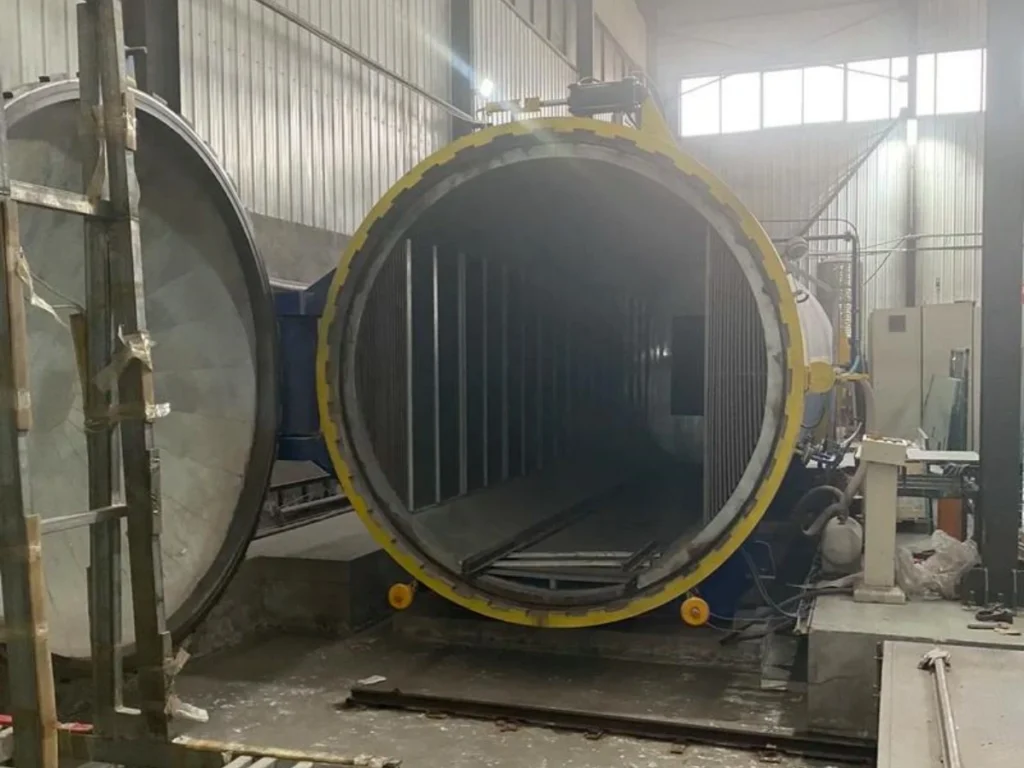

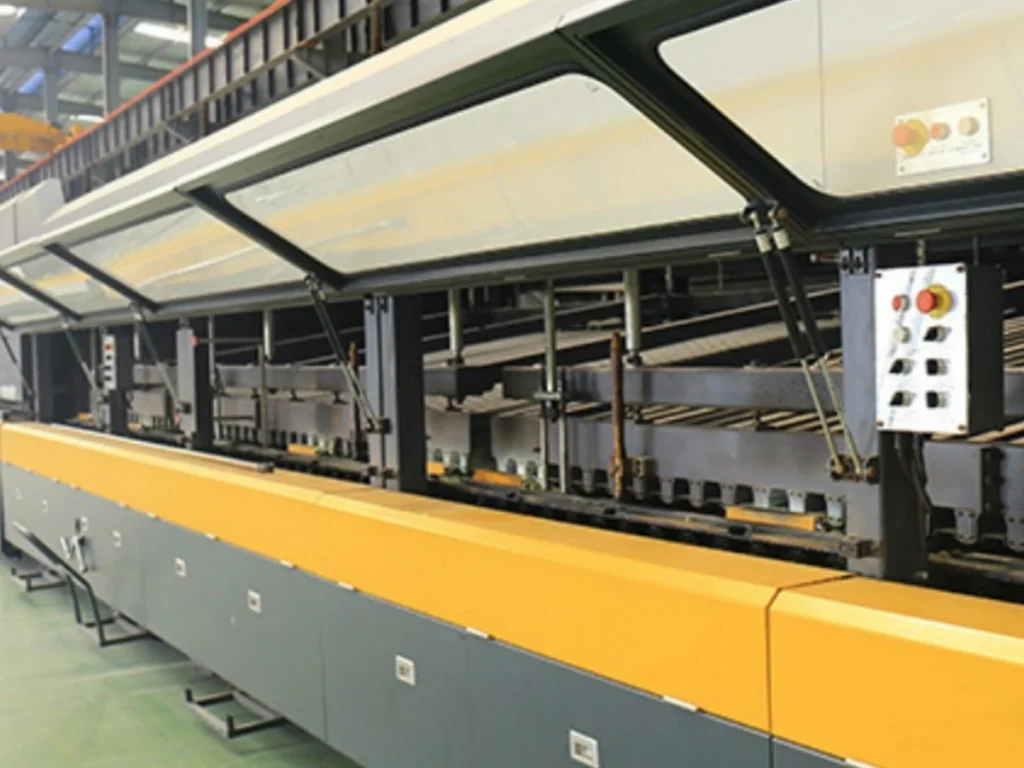

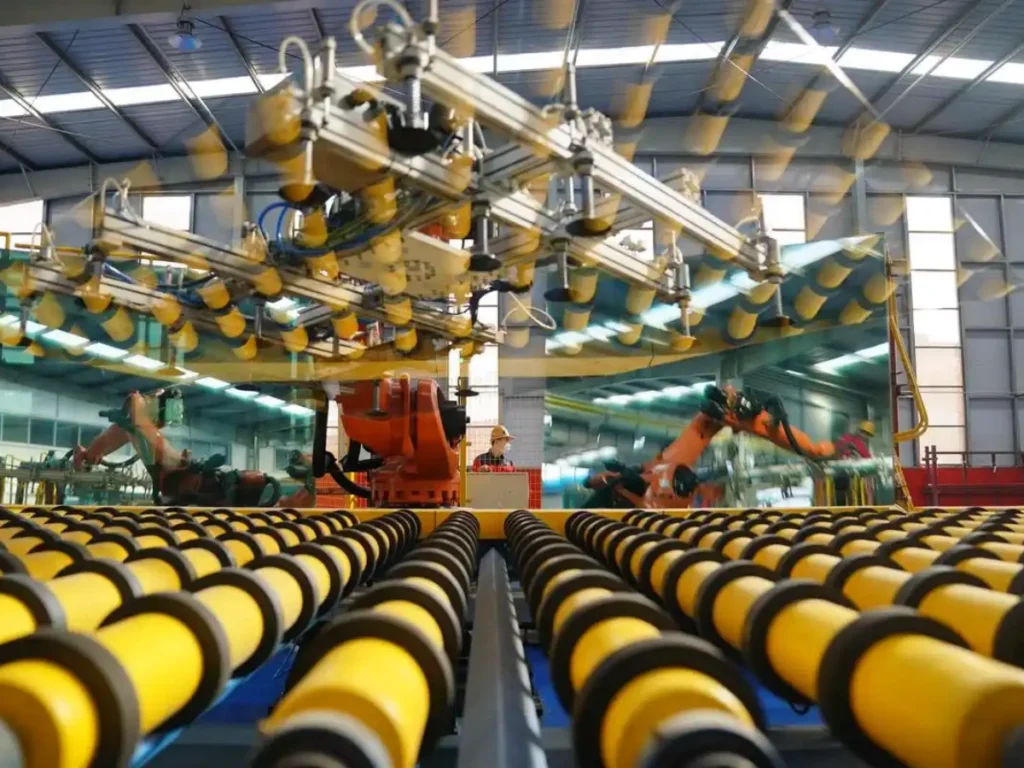

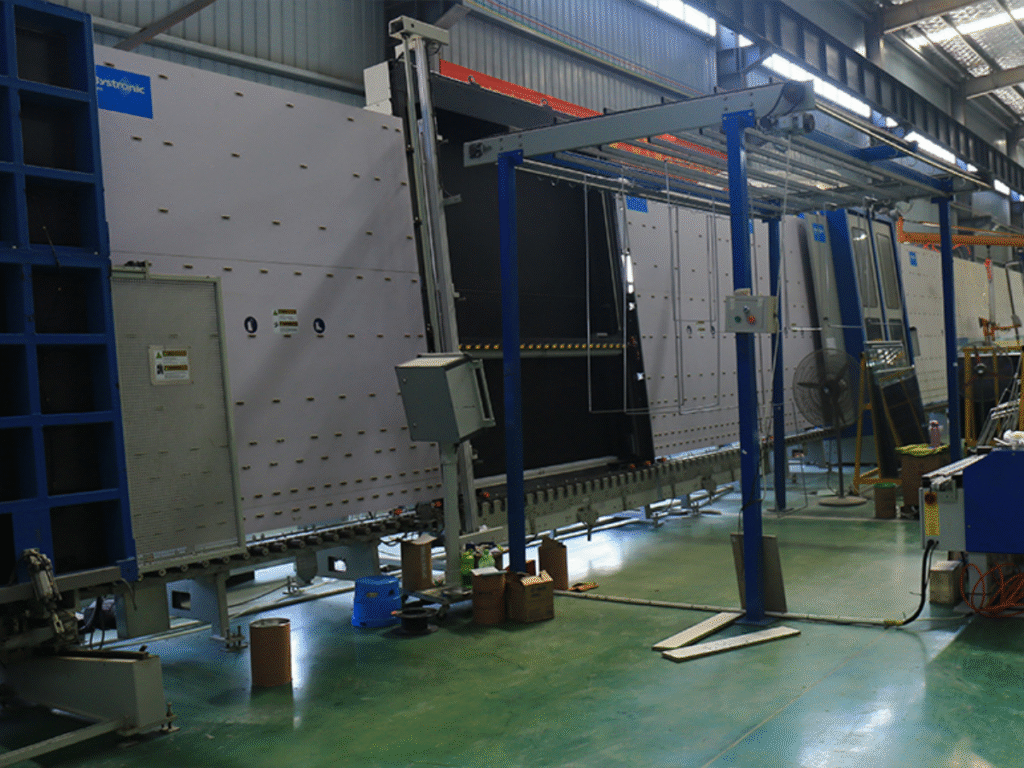

Working-Flow for Low E Laminated Tempered IGUs
Features 30mm Tempered Laminated Insulated Glazing
High Solar Performance – Low E coating reduces solar heat gain while maximizing visible light transmission.
Superior Safety & Security – Tempered laminated inner glass resists breakage and holds fragments in place upon impact.
Enhanced Thermal Insulation – 12A argon-filled cavity minimizes heat transfer for better energy savings.
Acoustic Comfort – Laminated construction significantly reduces noise penetration.
UV Protection – Blocks over 99% of harmful UV rays to protect interiors from fading.
Durability in Harsh Climates – High resistance to thermal stress, impact, and weathering.
Customizable Appearance – Available with clear, tinted, reflective, or decorative interlayers.

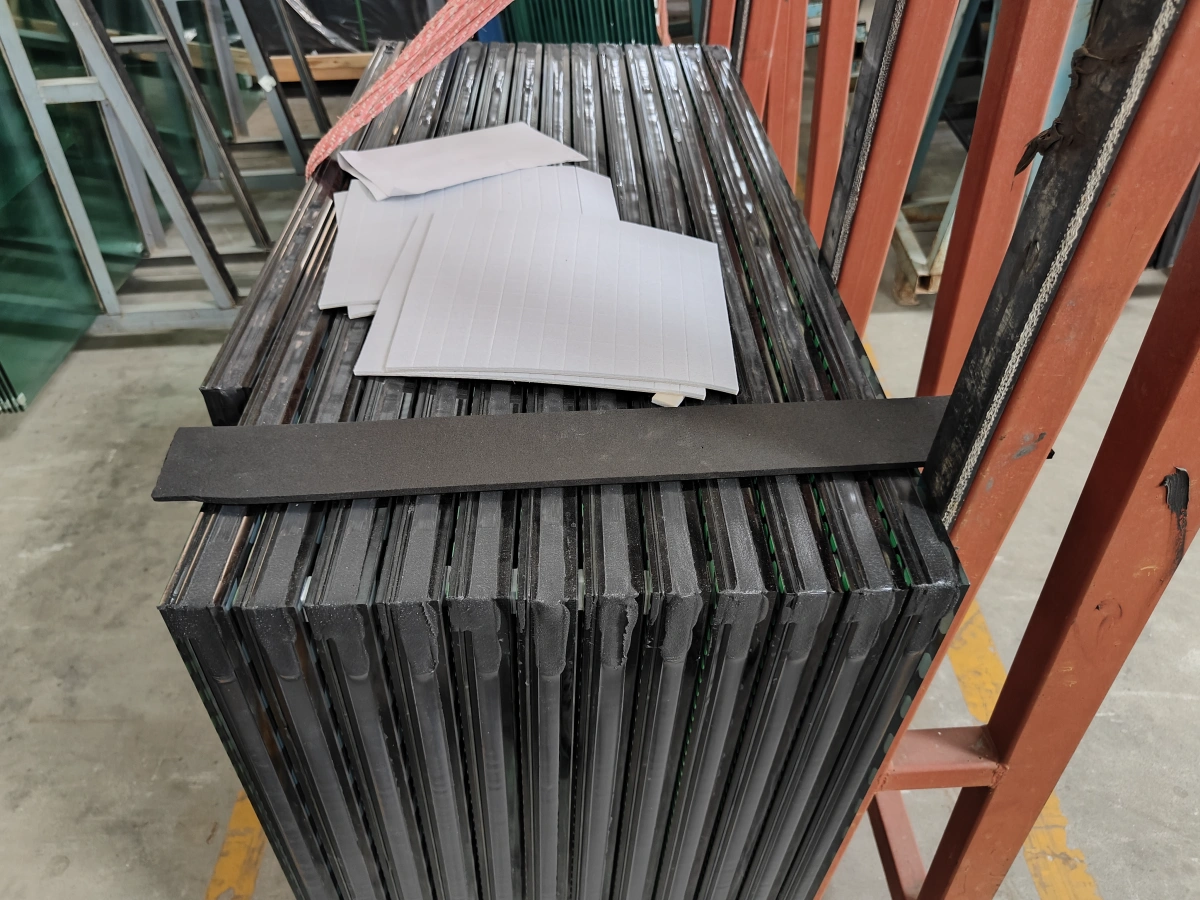

Specification for 30mm Laminated DGU Glass Panel
| Parameter | Specification |
|---|---|
| Glass Type | Low E Laminated Tempered IGU, Laminated Glass Insulated Glazed Panel |
| Overall Thickness | 30~31mm |
| Outer Pane | 6mm Tempered Low E Glass |
| Spacer | 12A(air), can be argon-filled aluminum spacer |
| Inner Pane | 13.52mm Tempered Laminated Glass (6mm + 1.52 PVB + 6mm) |
| Low E Coating Position | #2 Surface (inside face of outer pane) |
| Solar Heat Gain Coefficient (SHGC) | ~0.28–0.35 (depending on Low E type) |
| U-Value (W/m²·K) | ~1.1–1.6 depends on silver coated layers of Low E glass |
| Visible Light Transmission (VLT) | ~60–70% |
| Sound Reduction Index (Rw) | 38–42 dB |
| UV Blocking | ≥ 99% |
| Gas Fill (Option) | Argon ≥ 90% Purity |
Solar Performance Data Reference for Insulated Glazed Panel

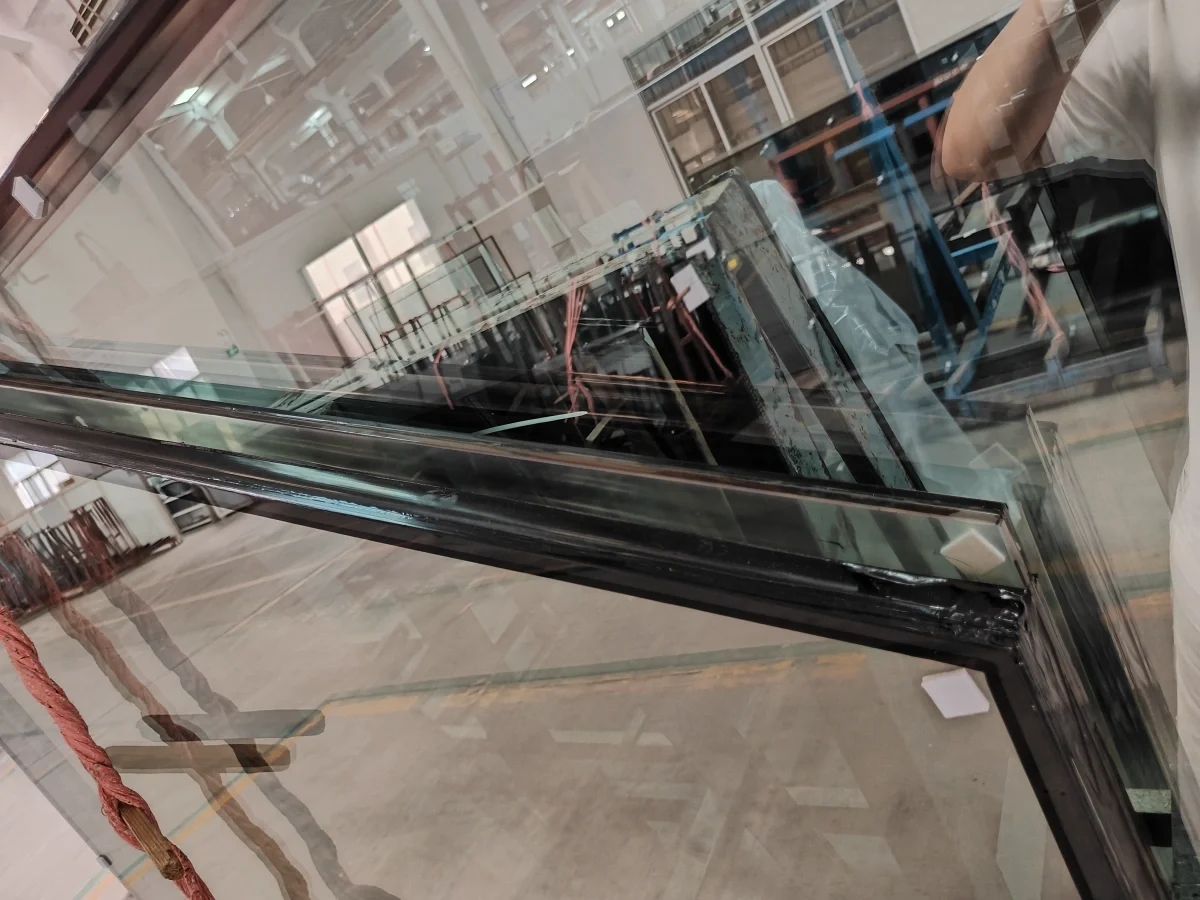

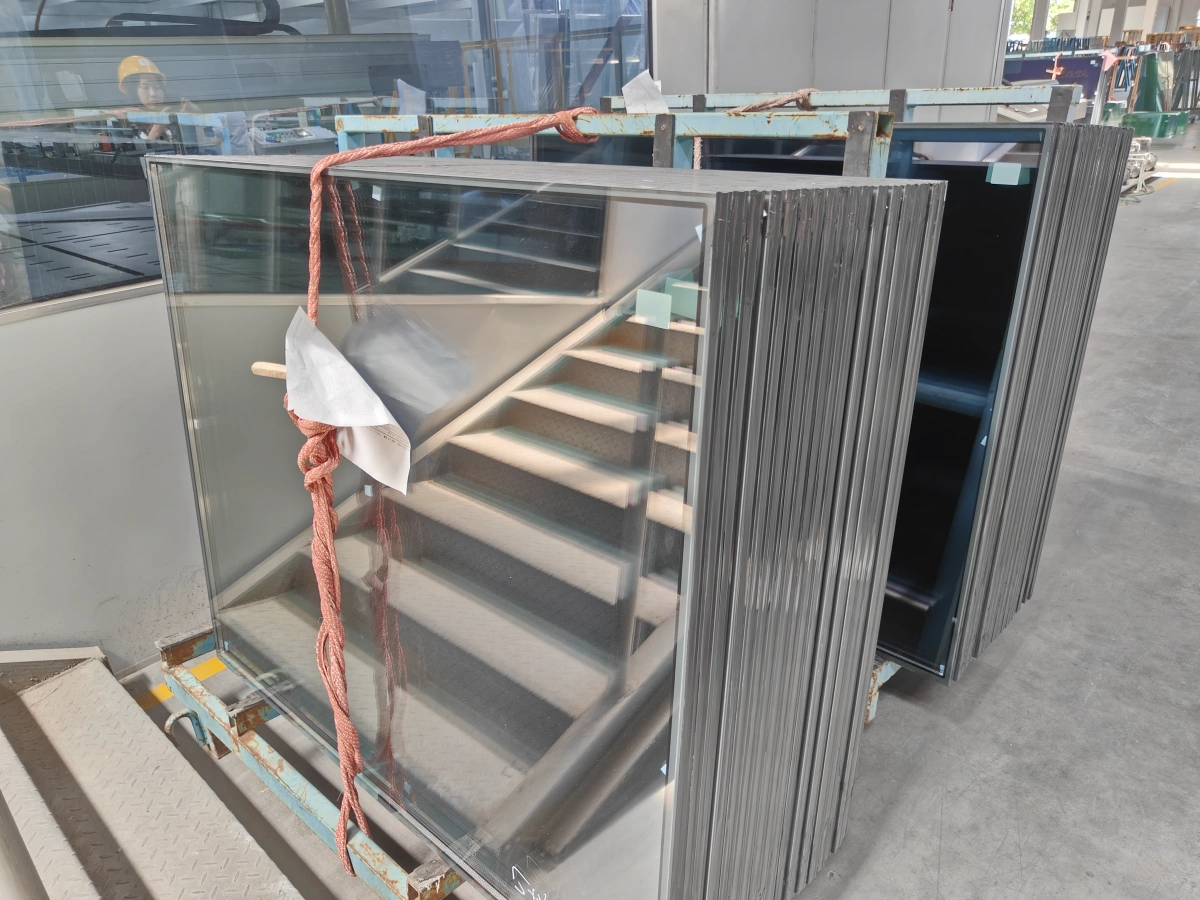

Different Laminated Insulated Glazed Panel
What Types of Low E Laminated Tempered IGUs You Can Get From Xpert BM?
- 6+12A+6+6mm Clear Low E Laminated Tempered IGUs
- 31.52mm Tinted Low E Laminated Tempered IGUs (grey, green, bronze, blue)
- 30mm Reflective Low E Laminated Tempered IGUs
- 6+12A+13.52mm Double silver Low E Laminated Tempered IGUs

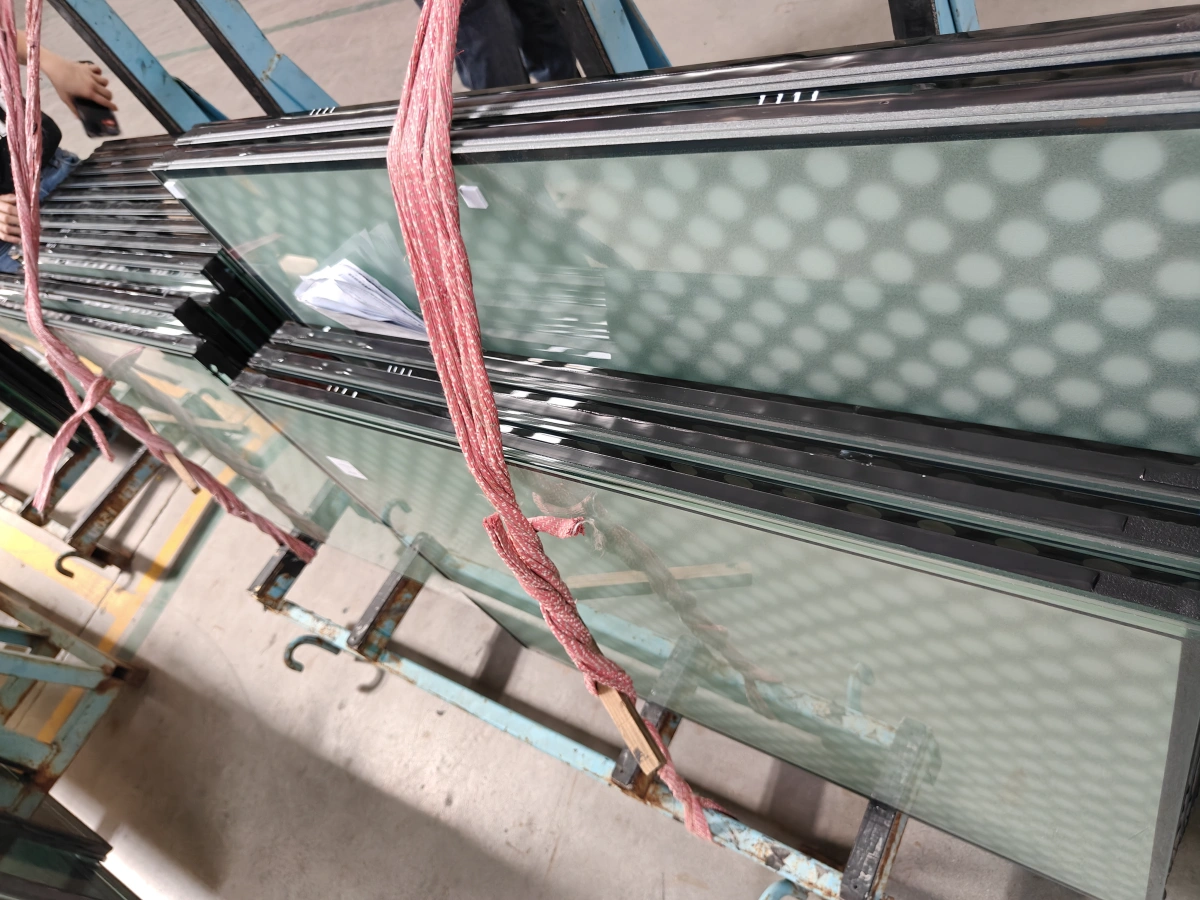

- 30mm Silk-Printed Low E Laminated Tempered IGUs
- 31.52mm Low Iron Low E Laminated Tempered IGUs
- 31.52mm Frosted or Patterned Low E Laminated Tempered IGUs

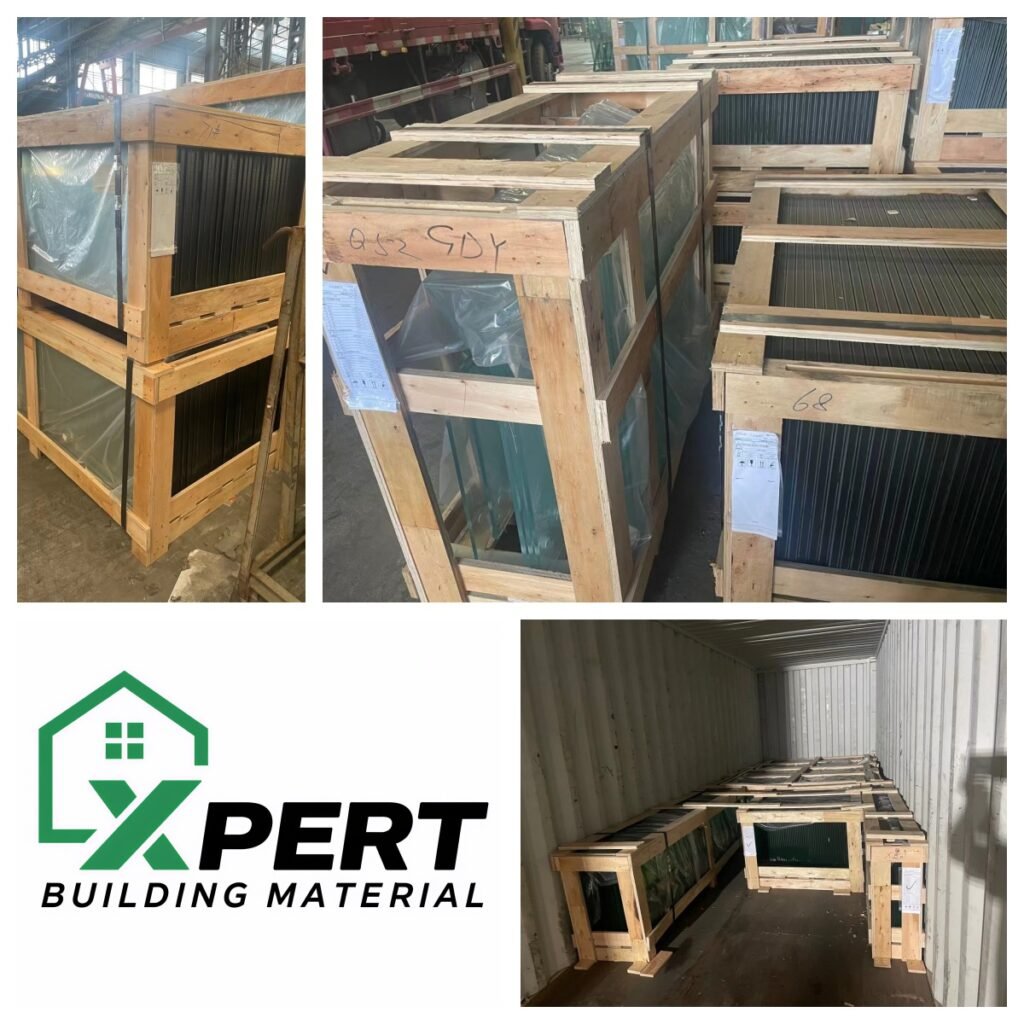

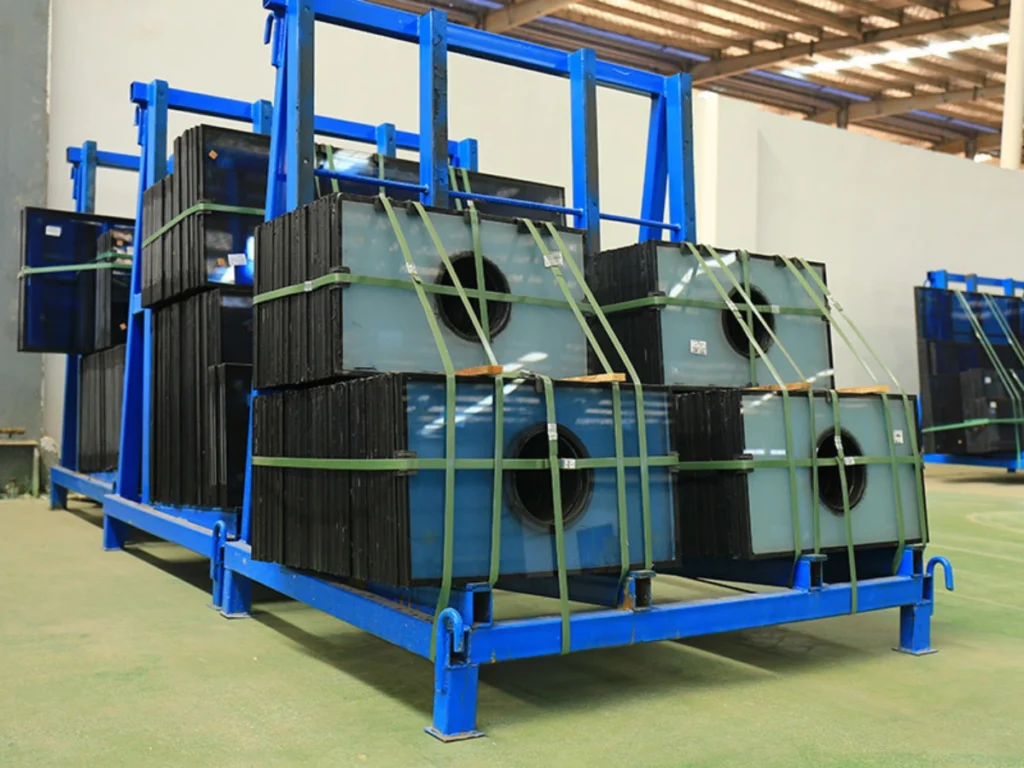

Packing Informarion for Laminated Insulated Glazed Panel
Packaging Type: Strong seaworthy plywood crates with moisture protection.
Separation: Each glass sheet separated by cork pads or EVA sheets.
Sealing: Wrapped with PE film to prevent moisture ingress.
Labeling: Each crate labeled with product specs, order number, and handling instructions.
Capacity: Typically 15–25 IGUs per crate (depends on dimensions and thickness).
Take the first step toward Low E Laminated Insulating Glazing Unit solutions. Get in touch with our experts to customize your insulated glass units today!
Again, contact us today for customized sizes, performance data, and bulk pricing — let us help you create smarter, safer, and more sustainable spaces.
FAQs for Order Low E Laminated Insulating Glazing Unit
For a first-time cooperation, we are happy to provide free samples for simple products such as clear tempered glass and clear laminated glass to support our initial collaboration. However, we are unable to cover the shipping costs. We hope both sides can share some of the expenses from a partnership perspective. If this order and project move forward and we work together in the future, these costs can be fully deducted from our formal cooperation.
Yes, we are able to provide triple Low-E glass insulated glass units (IGUs) according to your specifications. Actually we work based on very good relationship with XYG, CSG, Jinjing, TG Glass, SYP.
Yes, we can supply replacement Low-E insulated glass units (IGUs) to match your existing specifications, including size, glass type, spacer, and Low-E coating. We can manufacture them to fit seamlessly into your current frames.
Yes, we do offer door-to-door service. We can arrange it according to your location, and the exact cost and lead time will be confirmed based on the destination and shipping method you prefer.
For tempered glass and standard laminated glass, we generally offer a 5-year warranty. For higher-performance glass, such as insulated glass, Low-E glass, and coated glass, we typically provide a 10-year warranty.
Please note: As glass is inherently fragile, there is always a risk of breakage during transportation. Even for tempered glass, despite our use of high-quality raw glass from XYG, CSG, and PPG, and processing with advanced tempering furnaces from NorthGlass and LandGlass, there is still an approximate 0.2% risk of spontaneous breakage. If any damage occurs, we will do our best to assist you in minimizing the loss.
Of course. Xpert BM was founded with the mission of helping all our clients solve their challenges. Our primary customers are individuals small and medium contractors, and we are always happy to listen to their ideas. Our professional team will carefully consider their needs and provide the most suitable advice and recommendations.
