Insulating Glazing Unit
In the world of modern architecture, size meets performance. When standard glazing isn’t enough to capture the vision of a project, large insulated glass panels become the ultimate choice for designers who refuse to compromise. At Xpert Building Material (Xpert BM), we specialize in pushing the boundaries of glass engineering, offering over 6-meter jumbo-sized units that redefine transparency and energy efficiency.
What is 6 Meters Large Insulated Glass Panels?
6-meter large insulated glass panel is a high-performance architectural unit consisting of two or more glass panes separated by a sealed airspace. These “Jumbo” units are engineered to provide expansive, uninterrupted views while maintaining superior thermal and acoustic insulation.
Unlike standard glazing, these large insulated windows require specialized tempering and sealing processes to handle the immense wind load and structural stress associated with oversized dimensions. By utilizing custom thermopane glass technology, we ensure that even at 6 meters long, your facade remains perfectly flat and optically clear.
Working-Flow for Large Insulated Windows Glass
Features for Large Size Custom Insulated Glass Panels
Why choose Xpert BM for your oversized glazing needs? Our custom insulated glass panels are built to exceed international standards:
Expansive Visual Continuity: Minimize vertical or horizontal mullions to create a seamless “glass wall” effect.
Superior Thermal Control: Available with high-performance Low-E coatings to reflect heat while letting in natural light.
Acoustic Excellence: Our double pane insulated glass significantly reduces urban noise, creating a serene indoor environment.
Enhanced Safety: All units are fully tempered or laminated to ensure high impact resistance and structural integrity.
Condensation Resistance: Advanced desiccant-filled spacers prevent internal fogging, even in extreme climates.
Specification for 6 Meters Large Insulated Glass Panels
| Item | Specification |
|---|---|
| Maximum Size | Up to 7000 mm × 3300 mm |
| Glass Structure | Double pane insulated glass |
| Single Glass Thickness | 10 mm / 12 mm / 15 mm / 19mm |
| IGU Thickness Options | 28 mm / 32 mm / 36 mm / 40 mm+ |
| Spacer Type | Aluminum spacer / Warm edge spacer |
| Spacer Width | 9A / 12A / 15A / 16A / 19A / 20A / 22A / 24A / 26A / 27A |
| Gas Filling | Air / Argon (≥90%) |
| Coating Options | Clear / Low-E / Solar control |
| Glass Type | Tempered / Laminated / Heat-strengthened |
| Edge Sealant | Dual seal (Butyl + Silicone/Polysulfide) |
| U-Value | As low as 1.1 W/m²·K (depending on configuration) |
| Sound Insulation | Up to 40 dB |
| Safety Standard | EN, ASTM, AS/NZS, CE compliant |

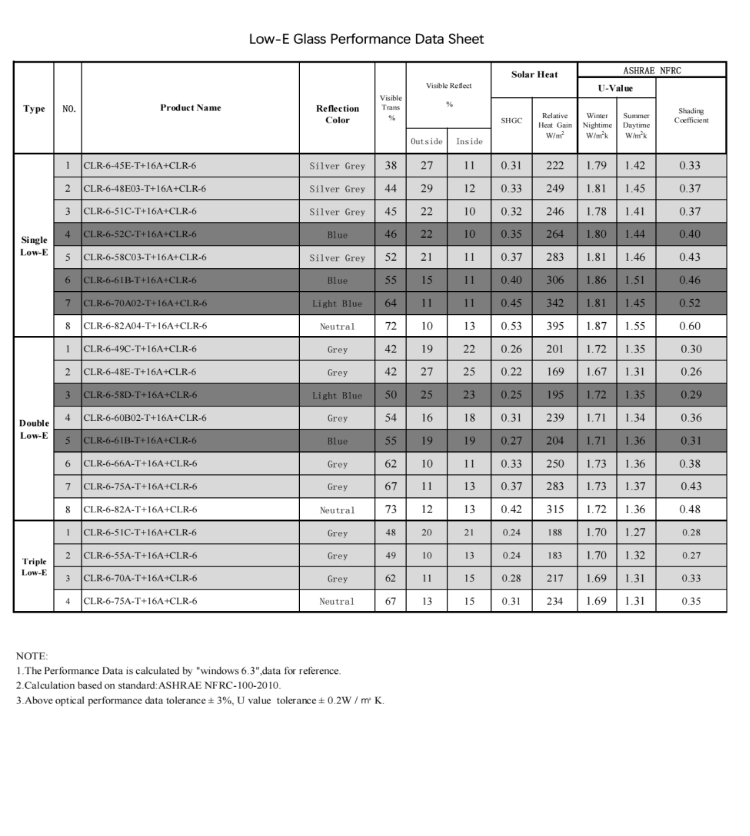

Solar Performance Data Reference from Large Size Low E IGUs Supplier
Application for Jumbo Size Double Pane Insulated Glass
Our double pane insulated glass in jumbo sizes is the preferred choice for iconic structures worldwide:
Luxury Residential: Floor-to-ceiling large insulated windows for high-end villas and penthouses.

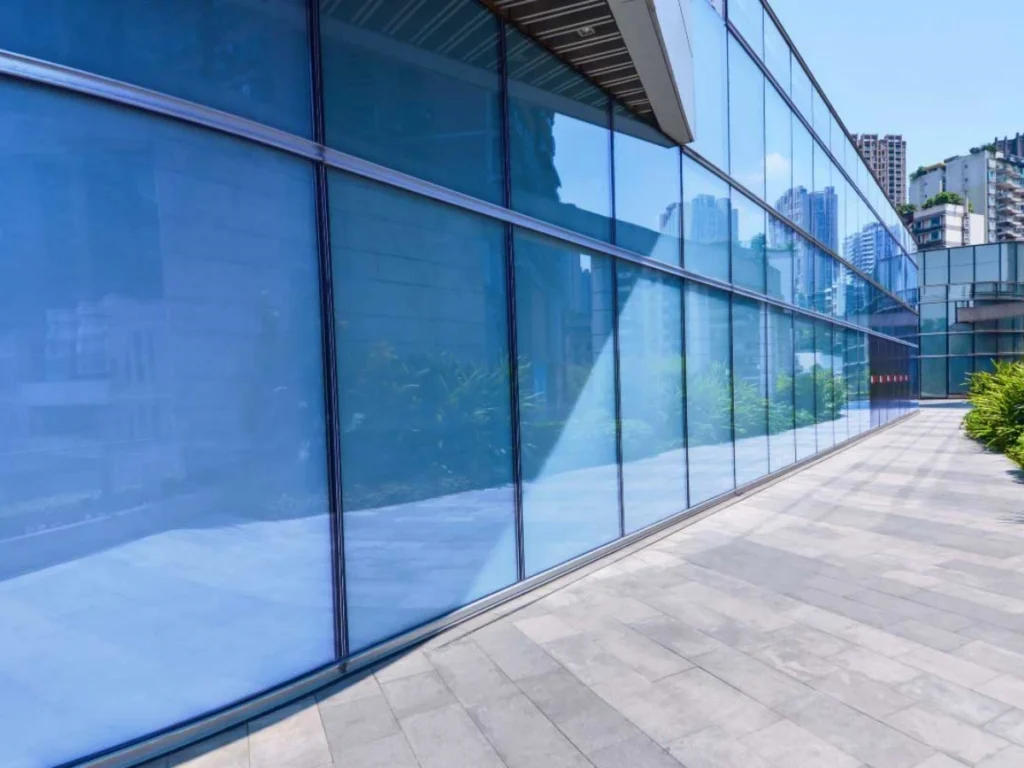

Commercial Skylines: Grand curtain wall systems for skyscrapers and corporate headquarters.
Retail Flagships: High-clarity storefronts for luxury brands requiring maximum product visibility.
Public Landmarks: Museums, airports, and galleries where natural light is a core design element.
Why Source Your Large Insulated Glass Panels from Xpert BM?
At Xpert Building Material, we don’t just sell glass; we provide structural solutions. We are a premier custom insulated glass panels China company with the technical capacity to handle extreme dimensions.
Precision Engineering: We use state-of-the-art automated Lisec and Bystronic production lines to ensure millimeter-perfect accuracy.
Deep Customization: From silk-screen printing to triple-silver Low-E coatings, we tailor every custom thermopane glass unit to your U-value and SHGC requirements.
Global Supply Chain: We have extensive experience exporting to North America, Europe, and Australia, ensuring compliance with local building codes.
Secure Packing & Logistics for 6 Meters Large Insulated Glass Panels
Transporting a 6-meter glass panel requires more than just a crate; it requires an engineering plan. To ensure your large insulated glass panels arrive in pristine condition:
Custom Plywood Crates: We use IPPC-certified, heavy-duty wooden crates designed for vertical loading.
Shock Absorption: Protective cork pads and specialized rubber buffers separate each panel.
Moisture Protection: Every shipment is wrapped in moisture-proof film and includes desiccant packs to prevent “sea sweat” during transit.
Open-Top Container Loading: We utilize specialized equipment to safely load jumbo units into open-top or flat-rack containers.
Bring Your Vision to Life with Xpert BM
Ready to transform your architectural project with the breathtaking clarity of large insulated glass panels? Whether you are designing a modern skyscraper or a bespoke luxury home, Xpert Building Material is your trusted partner for premium glazing.
Contact our technical team today for a custom quote and CAD support:
Company: Xpert Building Material (Xpert BM)
Email: sales@xpertglazing.com
WhatsApp: +86 15711964309
Service: Global Shipping | Custom Fabrication | Technical Consultation
FAQs for Order Large Custom Thermopane Glass Panel
For a first-time cooperation, we are happy to provide free samples for simple products such as clear tempered glass and clear laminated glass to support our initial collaboration. However, we are unable to cover the shipping costs. We hope both sides can share some of the expenses from a partnership perspective. If this order and project move forward and we work together in the future, these costs can be fully deducted from our formal cooperation.
Yes, we are able to provide triple Low-E glass insulated glass units (IGUs) according to your specifications. Actually we work based on very good relationship with XYG, CSG, Jinjing, TG Glass, SYP.
Yes, we can supply replacement Low-E insulated glass units (IGUs) to match your existing specifications, including size, glass type, spacer, and Low-E coating. We can manufacture them to fit seamlessly into your current frames.
Yes, we do offer door-to-door service. We can arrange it according to your location, and the exact cost and lead time will be confirmed based on the destination and shipping method you prefer.
For tempered glass and standard laminated glass, we generally offer a 5-year warranty. For higher-performance glass, such as insulated glass, Low-E glass, and coated glass, we typically provide a 10-year warranty.
Please note: As glass is inherently fragile, there is always a risk of breakage during transportation. Even for tempered glass, despite our use of high-quality raw glass from XYG, CSG, and PPG, and processing with advanced tempering furnaces from NorthGlass and LandGlass, there is still an approximate 0.2% risk of spontaneous breakage. If any damage occurs, we will do our best to assist you in minimizing the loss.
While our standard jumbo size is 6 meters, we can produce custom units up to 12 meters for specialized architectural projects.
Yes. We can manufacture large insulated glass panels using SGP (SentryGlas) laminated layers for extreme wind-load and impact resistance.
Yes. While 6-meter flat panels are our specialty, we can also manufacture custom insulated glass panels with a cylindrical curve. This requires a specialized tempering furnace capable of maintaining consistent heat across the entire surface to avoid optical distortion. These are ideal for corner facades where a seamless, “mullion-free” transition is desired.
Absolutely. For projects near airports or busy urban corridors, we recommend an asymmetric configuration for your double pane insulated glass. By using two different glass thicknesses (e.g., a 12mm outer pane and a 10mm inner pane) or incorporating an acoustic PVB laminated layer, we can disrupt sound wave frequencies and achieve a high STC (Sound Transmission Class) rating without sacrificing the 6-meter visual span.
