High Safety with Top Solar Performance 8+1.52+8+16A+10mm Low E Insulated Laminated Glass for Commercial Building

Send An Inquiry

Insulating Glazing Unit

Xpert BM - 800x400 Clear

As global building standards continue to evolve, modern commercial architecture demands glazing solutions that go far beyond basic transparency. Today’s projects require high safety performance, advanced thermal insulation, acoustic comfort, solar control, and long-term durability—all while complying with increasingly strict energy codes and green building certifications.

The 8+1.52+8+16A+10mm Low E insulated laminated glass is engineered precisely for these requirements. By combining laminated safety glass with high-performance insulated glass unit technology, this system offers a balanced solution for large-scale commercial buildings, high-rise façades, and energy-efficient envelopes.

At Xpert Building Material, we specialize in supplying premium insulated laminated glass systems tailored for international markets, delivering reliable performance across diverse climates and architectural demands.

What is 8+1.52+8+16A+10mm Low E insulated laminated glass?

8+1.52+8+16A+10mm Low E insulated laminated glass is a multi-layer laminated IGU glass structure designed for superior safety and energy efficiency.

The composition includes:

  • Outer laminated glass: 8mm + 1.52mm PVB + 8mm

  • Insulating air gap: 16mm (Air or Argon filled)

  • Inner monolithic Low E glass: 10mm

This structure integrates the benefits of laminated glass heat insulation with insulated glazing, forming a high-performance laminated insulated glass unit that enhances thermal control, noise reduction, and impact resistance.

Working-Flow for Laminated Insulated Glass Units

Cutting process for annealed glass
First Step - Cut to size and edging
LandGlass Tempering Furnace
Second Step - Tempering the Glass
Autoclave for laminated glass process
Third Step - Laminating the Glass
Bystronic IGU line
Final Step - Insulating the Glass

Features for 43.52mm Laminated IGU Glass

The total thickness of 43.52mm laminated DGU glass delivers outstanding performance for large-scale commercial buildings.

Key Advantages:

  • High safety & impact resistance
    Laminated glass holds together when broken, reducing injury risk and meeting safety glazing requirements.

  • Excellent thermal insulation
    The Low E coating significantly reduces heat transfer, improving U-value performance.

  • Superior sound insulation
    PVB interlayer and insulated cavity work together to reduce noise transmission.

  • Solar control & UV protection
    Effectively blocks harmful UV rays while maintaining natural daylight.

  • Condensation resistance
    Insulated structure minimizes moisture build-up in varying climates.

These features make it an ideal laminated insulated glass unit for energy-efficient and safety-critical applications.

Specification for 8+1.52+8+16A+10mm Low E insulated laminated glass

ItemSpecification
Product Name8+1.52+8+16A+10mm Low E Insulated Laminated Glass
Glass StructureLaminated Glass + Insulated Glass Unit
Outer Glass17.52mm laminated glass, can be clear, low iron, or others
Interlayer1.52mm PVB (Clear, Milky, Grey or Custom)
Inner Laminated Glass8mm Float Glass
Spacer Thickness16mm Aluminum Spacer
Gas FillingAir / Argon (Optional)
Inner Glass10mm Low E Glass
Total Thickness43.52mm
U-Value≤1.6 W/m²·K (Argon Filled)
Sound ReductionUp to 38–42 dB
Solar ControlHigh Solar Heat Rejection
Edge SealDual Seal (Butyl + Silicone)
StandardsEN 1279 / EN 14449 / ASTM / AS/NZS
CustomizationSize, Color, Coating, Gas Filling

Solar Performance Data Reference from Low E IGUs Supplier

Low E glass data sheet

Application for 8+1.52+8+16A+10mm Low E Insulated Laminated Glass

Thanks to its balanced performance, this laminated IGU glass is widely used in:

  • Commercial curtain wall systems

  • High-rise office buildings

  • Shopping malls & retail façades

  • Airports & transportation hubs

  • Hotels and luxury resorts

  • Hospitals and public buildings

It is particularly suitable for projects requiring laminated glass heat insulation with enhanced safety compliance.

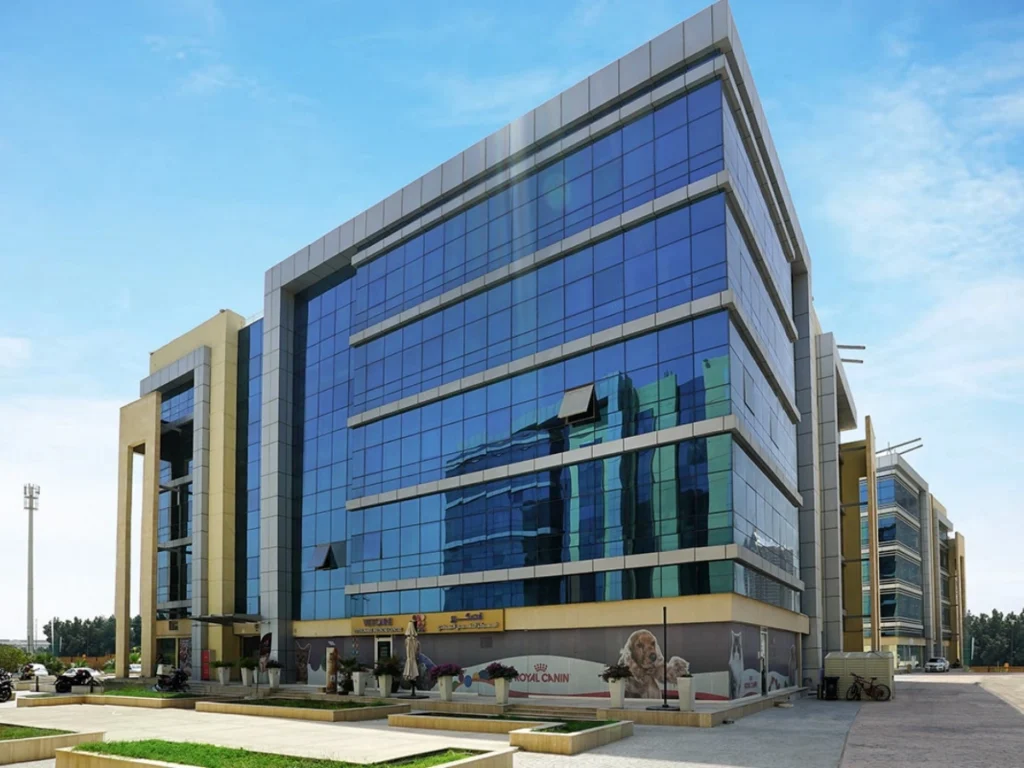

insulated laminated glass commercial building
laminated igu glass commercial building
laminated insulated glass units commercial building

How Many 8+1.52+8+16A+10mm Low E insulated laminated glass Types You Can Find From Xpert BM?

At Xpert Building Material, we offer flexible solutions tailored to project requirements:

  • Clear or tinted laminated IGU glass

  • Single or double silver Low E coatings

  • Argon-filled or air-filled insulated cavities

  • Acoustic PVB or security PVB options

  • Heat-strengthened or tempered laminated glass

Our laminated insulated glass units can be fully customized to meet local building codes and climate conditions.

Packing Information for 43.52mm Laminated Insulated Glass Units

To ensure safe global delivery, all laminated DGU glass products are packed with care:

  • Strong seaworthy plywood crates

  • Individual glass separation using cork pads

  • Anti-moisture protection film

  • Clear labeling for easy site identification

This packaging system minimizes breakage risk during long-distance transportation.

Package for Glazing Unit

If you are searching for a reliable supplier of high-performance insulated laminated glass for commercial buildings, Xpert Building Material is your trusted partner.

We provide:

  • Consistent product quality

  • Competitive factory pricing

  • Professional export service

  • Technical support for façade projects

📩 Email: sales@xpertglazing.com
📱 WhatsApp: +86 157 1196 4309

FAQs for Order 43.52mm Laminated Insulated Glass Units

1- Can I get a free sample from Xpert BM?

For a first-time cooperation, we are happy to provide free samples for simple products such as clear tempered glass and clear laminated glass to support our initial collaboration. However, we are unable to cover the shipping costs. We hope both sides can share some of the expenses from a partnership perspective. If this order and project move forward and we work together in the future, these costs can be fully deducted from our formal cooperation.

2-Can you do triple Low E glass IGUs?

Yes, we are able to provide triple Low-E glass insulated glass units (IGUs) according to your specifications. Actually we work based on very good relationship with XYG, CSG, Jinjing, TG Glass, SYP.

3- Do you do replacemnet order for Low E IGUs?

Yes, we can supply replacement Low-E insulated glass units (IGUs) to match your existing specifications, including size, glass type, spacer, and Low-E coating. We can manufacture them to fit seamlessly into your current frames.

4-Do you offer door-to-door service?

Yes, we do offer door-to-door service. We can arrange it according to your location, and the exact cost and lead time will be confirmed based on the destination and shipping method you prefer.

5- What guarantees do my orders come with?

For tempered glass and standard laminated glass, we generally offer a 5-year warranty. For higher-performance glass, such as insulated glass, Low-E glass, and coated glass, we typically provide a 10-year warranty.

Please note: As glass is inherently fragile, there is always a risk of breakage during transportation. Even for tempered glass, despite our use of high-quality raw glass from XYG, CSG, and PPG, and processing with advanced tempering furnaces from NorthGlass and LandGlass, there is still an approximate 0.2% risk of spontaneous breakage. If any damage occurs, we will do our best to assist you in minimizing the loss.

6-How does laminated glass heat insulation improve energy efficiency?

Laminated glass heat insulation works by combining:

  • Low E coating to reflect infrared heat

  • Insulated cavity to reduce heat transfer

  • PVB interlayer to enhance thermal stability

This combination significantly reduces cooling and heating loads, helping buildings meet modern energy codes.

7-Why is insulated laminated glass increasingly specified in modern commercial buildings?

Insulated laminated glass has become the preferred glazing solution because it addresses multiple building performance requirements simultaneously. Unlike conventional double glazing, it combines:

  • Structural safety from laminated glass

  • Thermal efficiency from insulated glass units

  • Acoustic comfort through PVB interlayers

  • Solar control via Low E coatings

This integration allows architects and façade consultants to simplify specifications while achieving higher overall performance, which is why insulated laminated glass is now widely required in commercial and public projects.

8-Is 43.52mm thickness excessive for commercial façades?

Not at all. In fact, the 43.52mm total thickness is often required for:

  • High wind load resistance

  • Large glass panel sizes

  • Enhanced acoustic and thermal targets

Modern façade systems are designed to accommodate thicker insulated laminated glass units to meet higher performance expectations.
