Aluminum Glass Curtain Wall System
Excellent Cost-Effective With High Performance Aluminum Glass Curtain Wall System, 36mm Glazed Aluminum Curtain Walls

Send An Inquiry

Glass Aluminum Curtain Wall System

Xpert BM - 800x400 Clear

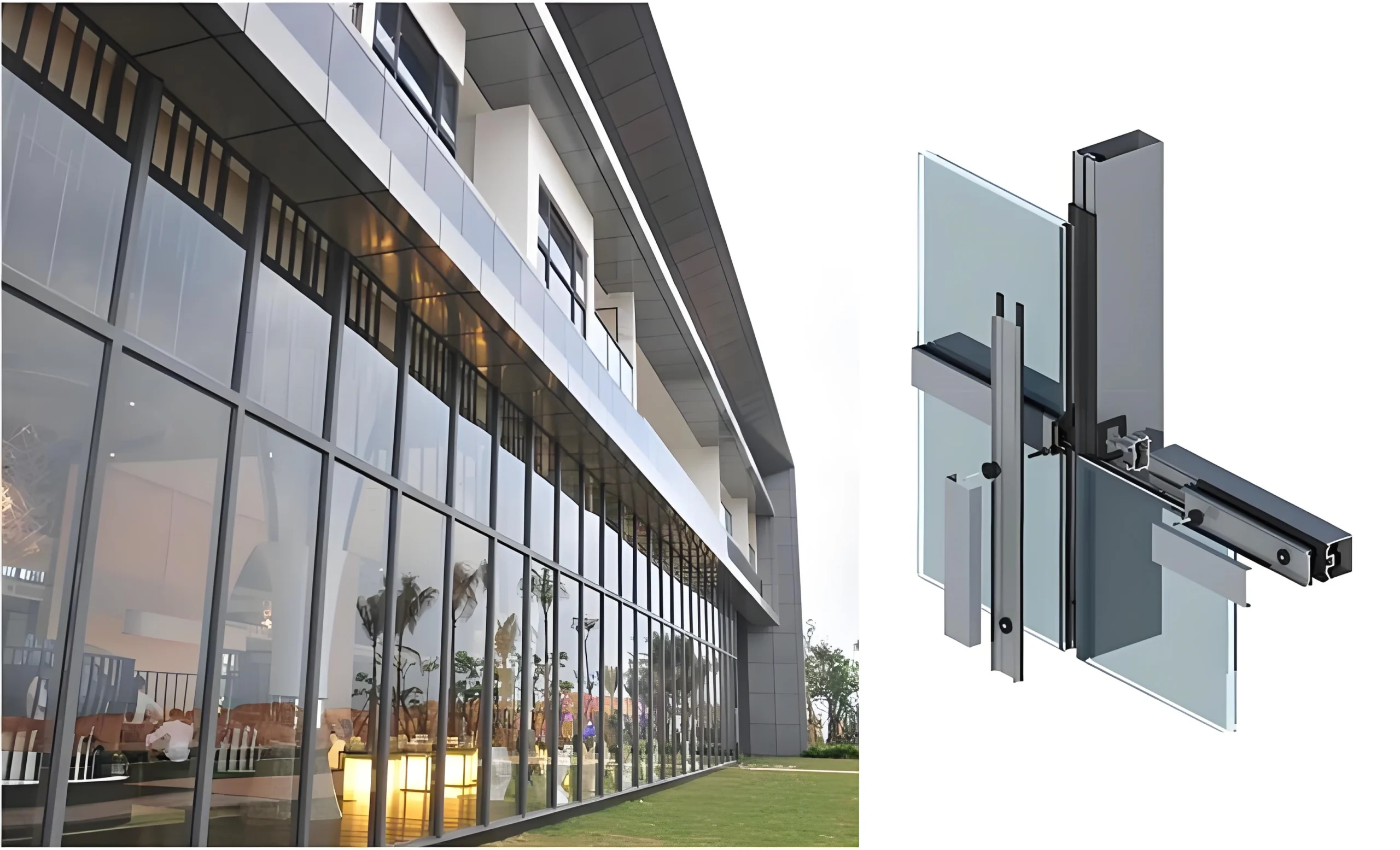

What is Aluminum Glass Curtain Wall System?

The Aluminum Glass Curtain Wall System is a non-structural exterior façade made of lightweight aluminum frames and high-performance glass panels. It is designed to enhance the appearance, energy efficiency, and weather protection of modern buildings without bearing any structural load.

This system acts as a protective outer skin attached to the building’s main structure, providing excellent thermal insulation, soundproofing, and resistance to wind and moisture. The sleek combination of aluminum and tempered glass creates a contemporary architectural look while allowing maximum natural light into the interior.

Ideal for commercial complexes, office towers, hotels, and high-rise residential projects, the Aluminum Glass Curtain Wall System offers durability, easy maintenance, and long-term performance — making it a preferred choice for architects and developers seeking both style and functionality.

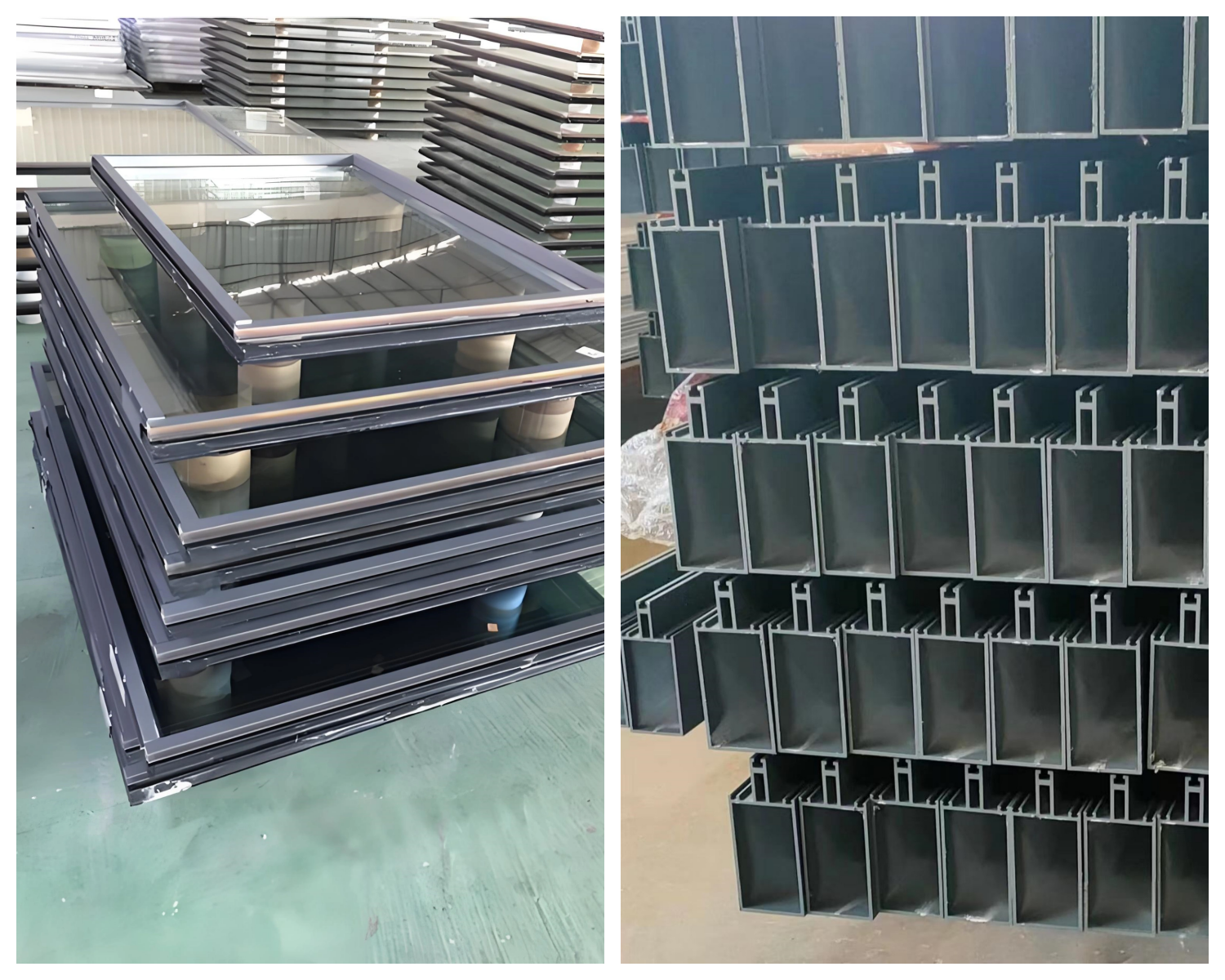

Advanced and complete production base

Features for Glazed Aluminum Curtain Walls

1. Modern Architectural Appeal
Designed for contemporary buildings, the Aluminum Glass Curtain Wall System delivers a clean, elegant façade that enhances both the structure’s appearance and value. The slim aluminum frames and large glass panels allow abundant natural light and panoramic visibility.

2. High Strength and Durability
Made from premium-grade aluminum alloy and tempered or laminated safety glass, the system offers outstanding strength while remaining lightweight. It withstands heavy wind loads, vibration, and environmental stress, ensuring long-term reliability.

3. Superior Thermal and Acoustic Insulation
Incorporating thermal break profiles and insulated glass units glazed aluminum curtain walls (IGUs), this system minimizes heat transfer and outside noise. The result is improved indoor comfort and lower energy consumption in both hot and cold climates.

4. Excellent Weather Resistance
Engineered with advanced drainage channels, silicone sealants, and weatherproof gaskets, the curtain wall prevents water leakage and air infiltration, maintaining a secure and energy-efficient building envelope.

5. Flexible Design and Customization Options
Available in stick, unitized, and semi-unitized configurations, this system supports a variety of glass thicknesses, finishes, and colors. Architects can choose from anodized, powder-coated, or PVDF frame finishes to match their design intent.

6. Sustainable and Low Maintenance
The use of recyclable aluminum and eco-friendly glass materials supports green building standards. Its corrosion-resistant surface and smooth glazing make cleaning and maintenance quick and cost-effective.

7. Versatile Application
Perfect for office towers, commercial complexes, airports, hotels, and residential high-rises, this façade system adapts easily to diverse building types and climate conditions while maintaining consistent performance and style.

Specification of Glass Aluminum Panel Curtain Wall

More details for Glazed Aluminum Curtain Walls, check below you will get more info:

SpecificationDetails
Product NameAluminum Glass Curtain Wall System
Frame MaterialHigh-Strength Aluminum Alloy (6063-T5 / 6061-T6)
Glass ConfigurationSingle / Double Glazed Tempered, Laminated, or Low-E Insulated Glass
Glass Thickness6mm – 32mm (Customizable)
System TypeStick, Unitized, or Semi-Unitized Curtain Wall
Thermal Break OptionPolyamide or PU Thermal Barrier (Optional)
Surface Finish OptionsAnodized, Powder Coated, or PVDF Fluorocarbon Coating
Maximum Wind Load ResistanceUp to 5,000 Pa (depending on design)
Air Tightness≤ 0.3 m³/(m·h) under 600 Pa pressure
Water Tightness≥ 750 Pa
Sound Insulation35 – 45 dB (based on glass type)
Thermal Insulation (U-Value)1.8 – 2.8 W/m²·K
Seismic PerformanceDesigned to accommodate structural movement
Fire Resistance RatingOptional fire-rated glazing available
Applicable Building TypesCommercial, Office, Hotel, Mall, Airport, Residential High-Rise
Installation MethodOn-site Assembly (Stick) or Pre-fabricated Panels (Unitized)
CustomizationSize, frame color, glass type, and coating available
CertificationsCE, ISO 9001, ASTM, SGS, or as per project requirement
MaintenanceLow maintenance; corrosion- and UV-resistant materials

Different Glass Choices With Glazed Aluminum Curtain Walls

5mm toughened glass panel wholesale price
Toughened Glass
17.52mm Toughened Tempered Laminated Glass
Laminated Safety Glass
5-19mm Dots Ceramic Frit Glass
Screen Printed Glass
Low E Laminated Insulated Glazed Panel
Insulated Glass

How to Buy Our Glass Aluminum Curtain Walls and Insulated Panels​?

Purchasing our Aluminum Glass Curtain Wall System and Insulated Panels is simple and straightforward. We provide end-to-end support — from design consultation to delivery and installation — ensuring that every project meets your exact architectural and technical requirements.

1. Send Your Project Details

Start by sharing your building drawings, façade dimensions, and design specifications with our sales team. Include information such as glass type, frame color, and preferred system (stick, unitized, or semi-unitized) so we can provide the most accurate solution.

2. Receive a Custom Quotation

Our engineers will review your project needs and prepare a personalized quotation based on materials, system type, and performance requirements. We ensure competitive pricing and transparent cost breakdowns with no hidden fees.

3. Approve the Design & Technical Drawings

Once the quote is accepted, our design team provides detailed shop drawings and structural calculations for your approval. You can request adjustments in glass configuration, thermal performance, or aesthetic design before final confirmation.

4. Production & Quality Inspection

After approval, we begin precision manufacturing using advanced production lines. Each aluminum frame and insulated glass panel undergoes strict quality control testing for durability, air-tightness, and weather resistance to ensure consistent performance.

5. Packaging & Delivery

We use secure export-standard packaging to protect all materials during transportation. Our logistics team can coordinate global shipping by sea, air, or land, depending on your project timeline and destination.

Bring your architectural vision to life with our Aluminum Glass Curtain Wall System — where strength, style, and energy efficiency meet. Whether you’re designing a commercial tower, a modern office, or a luxury residence, our advanced façade solutions deliver performance and elegance that last.

📞 Contact us today to discuss your project requirements or request a free consultation with our curtain wall design experts.

FAQs for Order Aluminum Glass Curtain Wall System

1-Can I get a free sample from Xpert BM?

As this is offered as a complete solution, should you require the glass and accessories to be shipped together, the related shipping costs will need to be borne by you. That said, for future official cooperation, we are open to discussing the deduction of the sample fee from your subsequent orders.

Alternatively, if you only require the accessories for reference, you will only be responsible for the freight charges.

2-Do you offer door-to-door service?

Yes, we do offer door-to-door service. We can arrange it according to your location, and the exact cost and lead time will be confirmed based on the destination and shipping method you prefer.

3-What guarantees do my orders come with?

The glass comes with a 5-year warranty, while the accessories are covered for 5-10 years depending on the specific product. Please note that the warranty period simply refers to the coverage we provide—it does not mean that our products will fail after 5 or 10 years.

4-What are the advantages of using an aluminum glass curtain wall compared to traditional walls?

Unlike traditional concrete or brick walls, aluminum glass curtain walls are lightweight, flexible, and highly resistant to corrosion. They improve thermal insulation, reduce energy costs, and give buildings a modern, transparent appearance. The glass façade also enhances daylight penetration, which helps create bright, comfortable interior environments while lowering artificial lighting needs.

5-How is an Aluminum Glass Curtain Wall System installed?

Curtain wall systems can be installed using different methods depending on the project’s design — such as the stick system, unitized system, or semi-unitized system. In the stick system, components are assembled on-site, making it ideal for small-scale projects. In the unitized system, panels are pre-fabricated in the factory and installed directly onto the building, ensuring faster construction, better precision, and improved quality control.

6-Can the Aluminum Glass Curtain Wall System be customized for different architectural designs?

Absolutely. Each curtain wall system is custom-engineered to match the architect’s vision and project requirements. You can choose from various glass types (clear, tinted, reflective, or laminated), frame finishes (anodized, powder-coated, or PVDF), and panel dimensions to achieve the desired look and performance. This flexibility makes it ideal for commercial buildings, corporate offices, airports, hotels, and high-end residential projects.

7-How long does it take to manufacture and deliver curtain walls or insulated panels?

Production time depends on the project size and customization level. Typically, smaller projects take 3–5 weeks, while large-scale commercial façades may require 6–10 weeks for fabrication and quality testing.
After manufacturing, our logistics team arranges safe and timely delivery to your location, coordinating with your construction schedule to ensure smooth installation.

8-What maintenance is required for aluminum curtain walls and insulated panels?

Maintenance is minimal. Both aluminum frames and glass panels are corrosion-resistant and easy to clean. Regular inspection of sealants, drainage systems, and glass surfaces once or twice a year helps maintain optimal appearance and performance. Using mild soap and water or a professional glass cleaner keeps the façade looking new for decades.
