Laminated Safety Glass

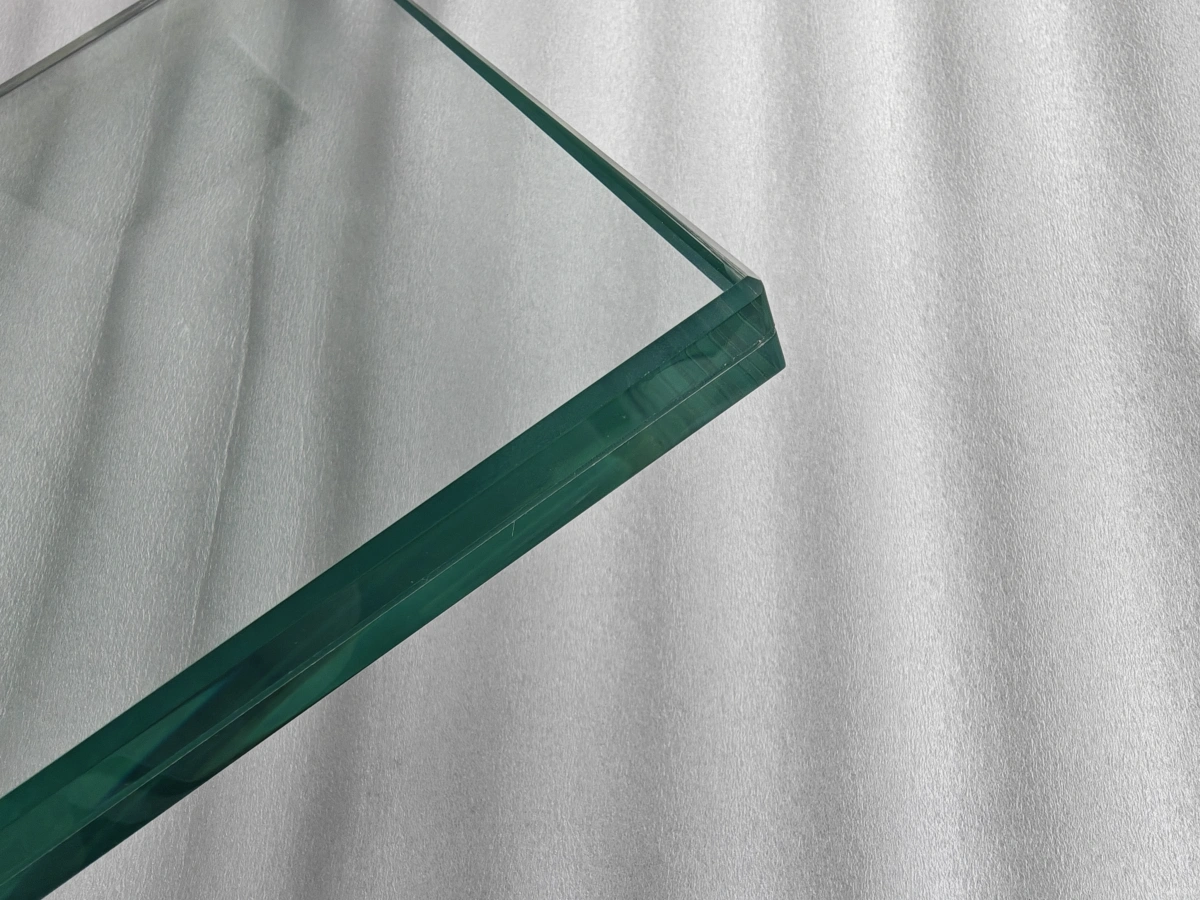

What is 6mm Laminated Glass Panel?
Our 6mm laminated glass panel, available in 33.1 and 33.2 configurations, are high-performance safety glass products manufactured to meet ANSI Z97 standards for impact resistance and durability. Made by bonding two layers of clear or colored float glass with a strong PVB (Polyvinyl Butyral) interlayer, these laminated panels offer enhanced safety, sound insulation, and UV protection.
Xpert BM, as a trusted building glass supplier, we provide reliable, high-quality laminated glass solutions for architectural, interior, and exterior applications. These panels are widely used in windows, doors, partitions, curtain walls, skylights, railings, and facades—where both safety and aesthetics are essential.

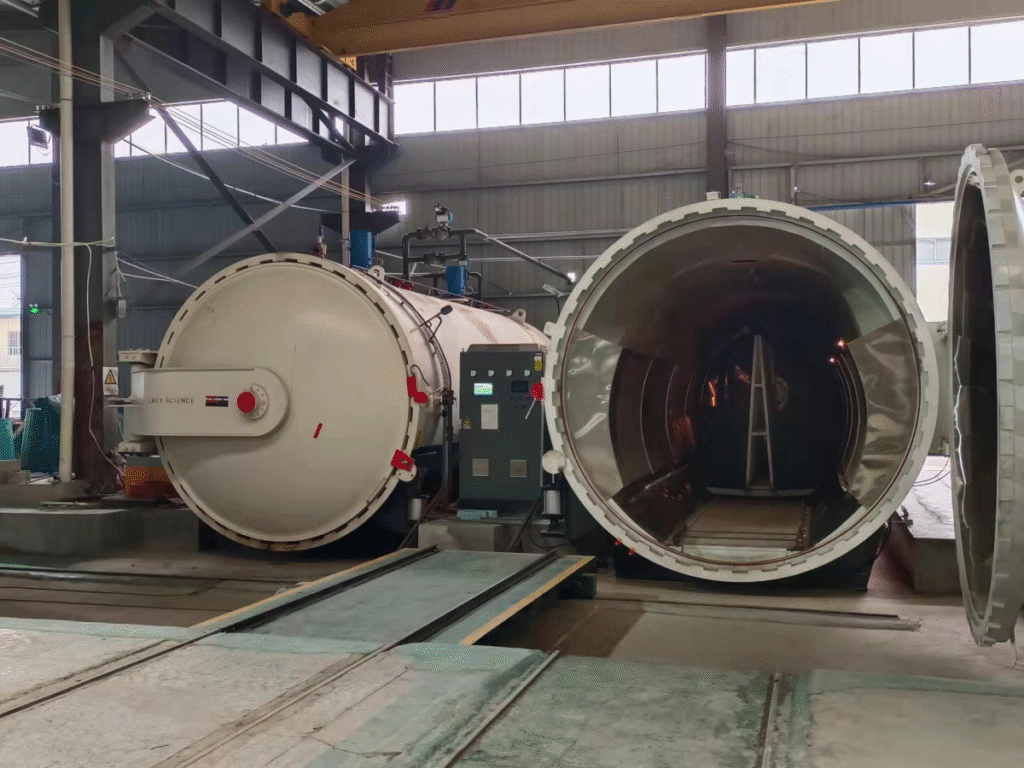

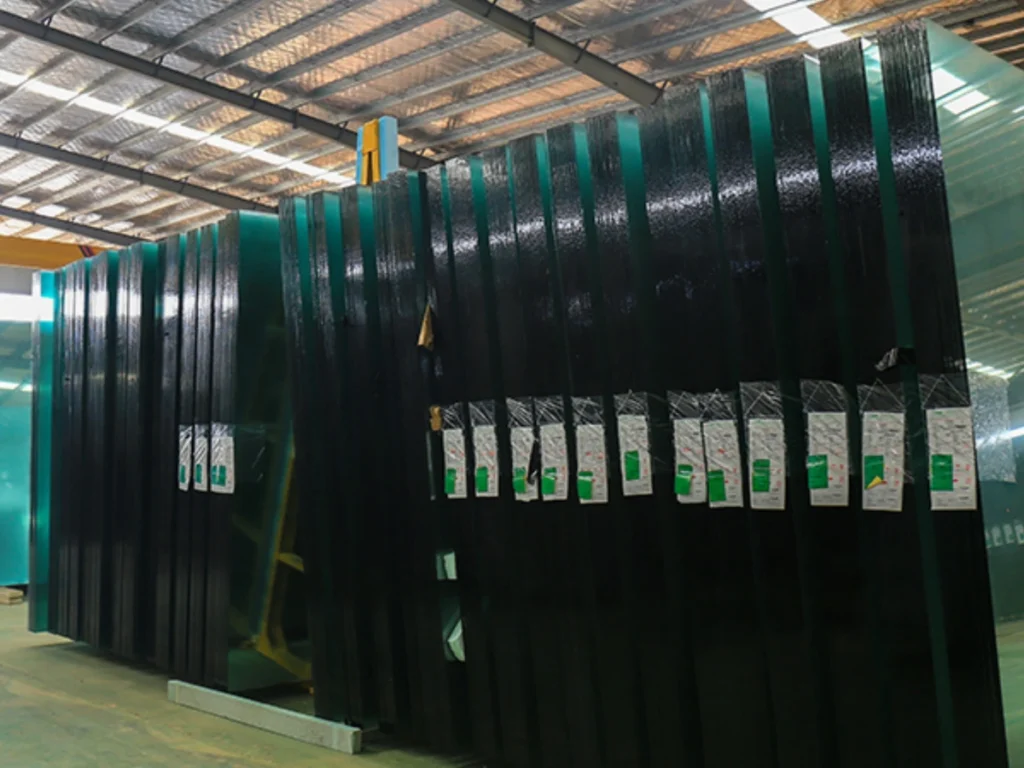

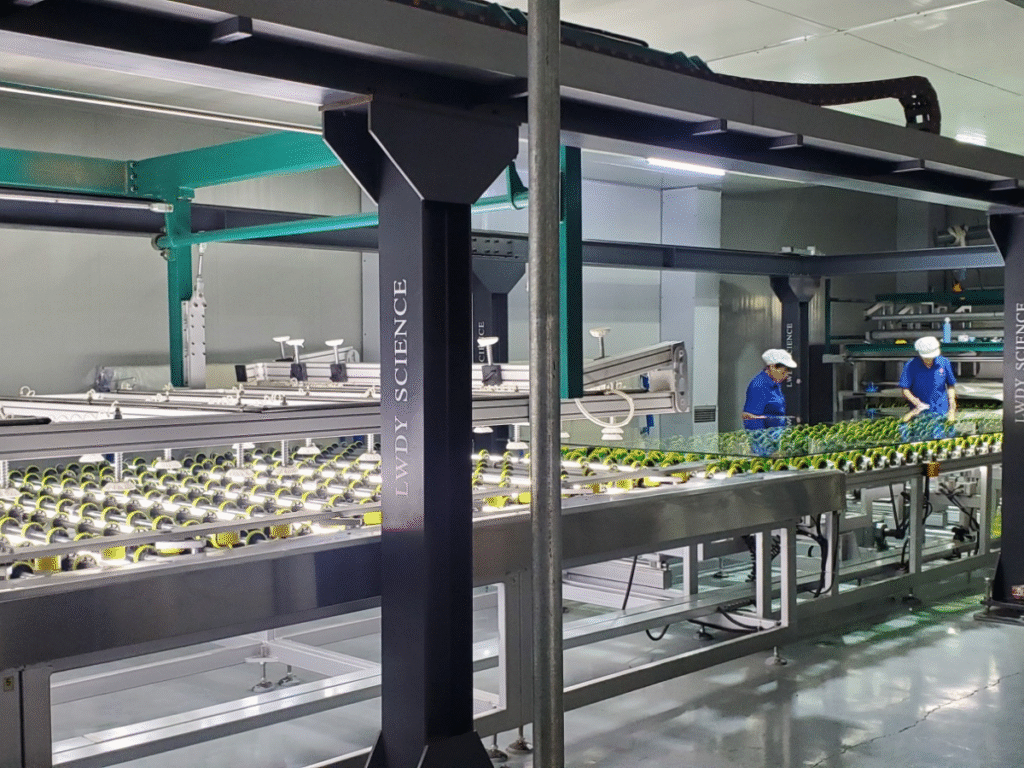

Processing Flow for 6mm Laminated Glass Panel
Features

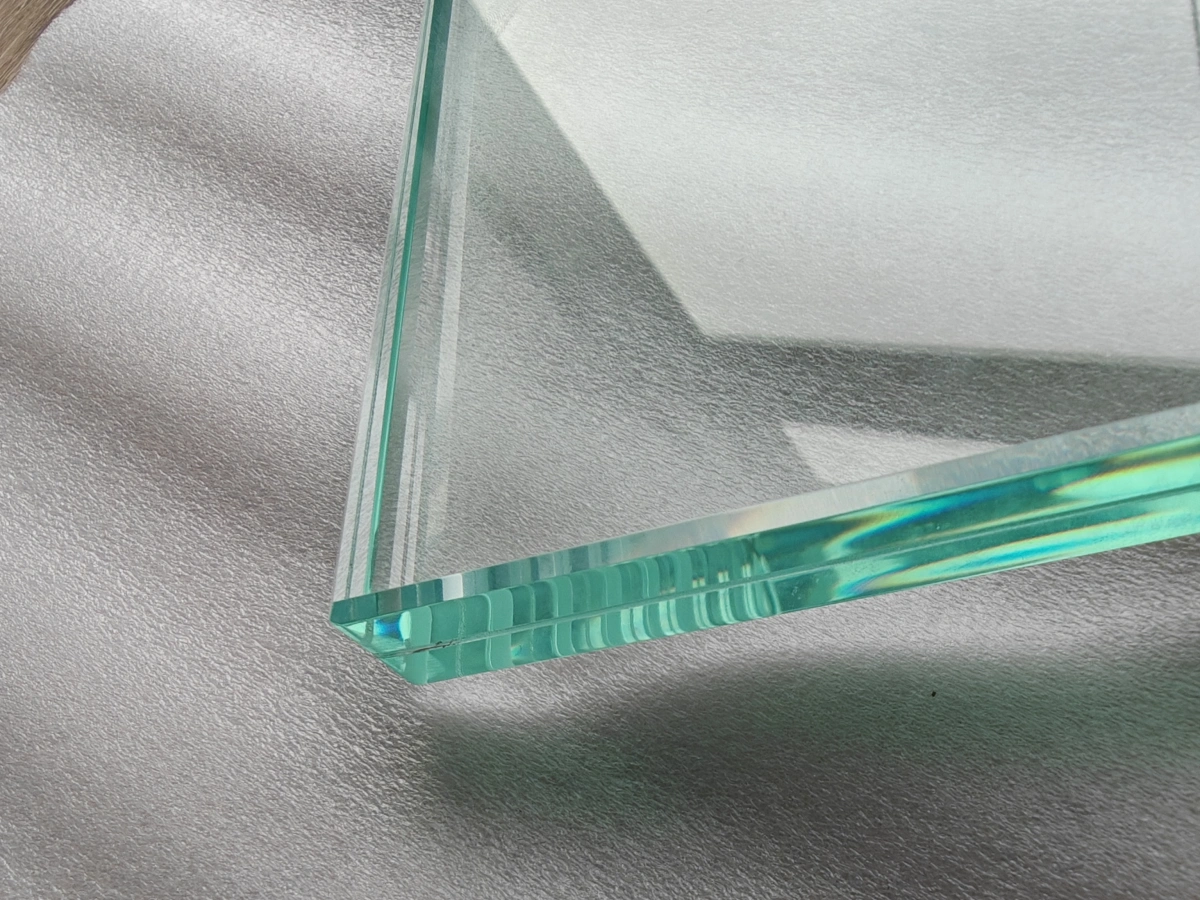

- It is made of laminated float glass that is not tempered, allowing it to be cut to size when glass is required by the customer.
- It can be translucent or made with colored PVB interlayers, permitting light transmission while offering privacy for interior spaces.
- This is a type of safety glass. When broken, the fragments remain bonded together by the clear PVB interlayer.
- It can be drilled, notched, edge-polished, and processed in other ways.
Specification
| Specification | Details |
|---|---|
| Product Name | 6mm Laminated Glass Panels |
| Glass Structure | 33.1 (2×3mm glass + 1 PVB) / 33.2 (2×3mm glass + 2 PVB) |
| Total Thickness | Approx. 6.38mm (33.1) / 6.76mm (33.2) |
| Interlayer Type | PVB / SGP / EVA (customizable) |
| Surface Finish | Clear / Low-Iron / Tinted / Reflective / Frosted |

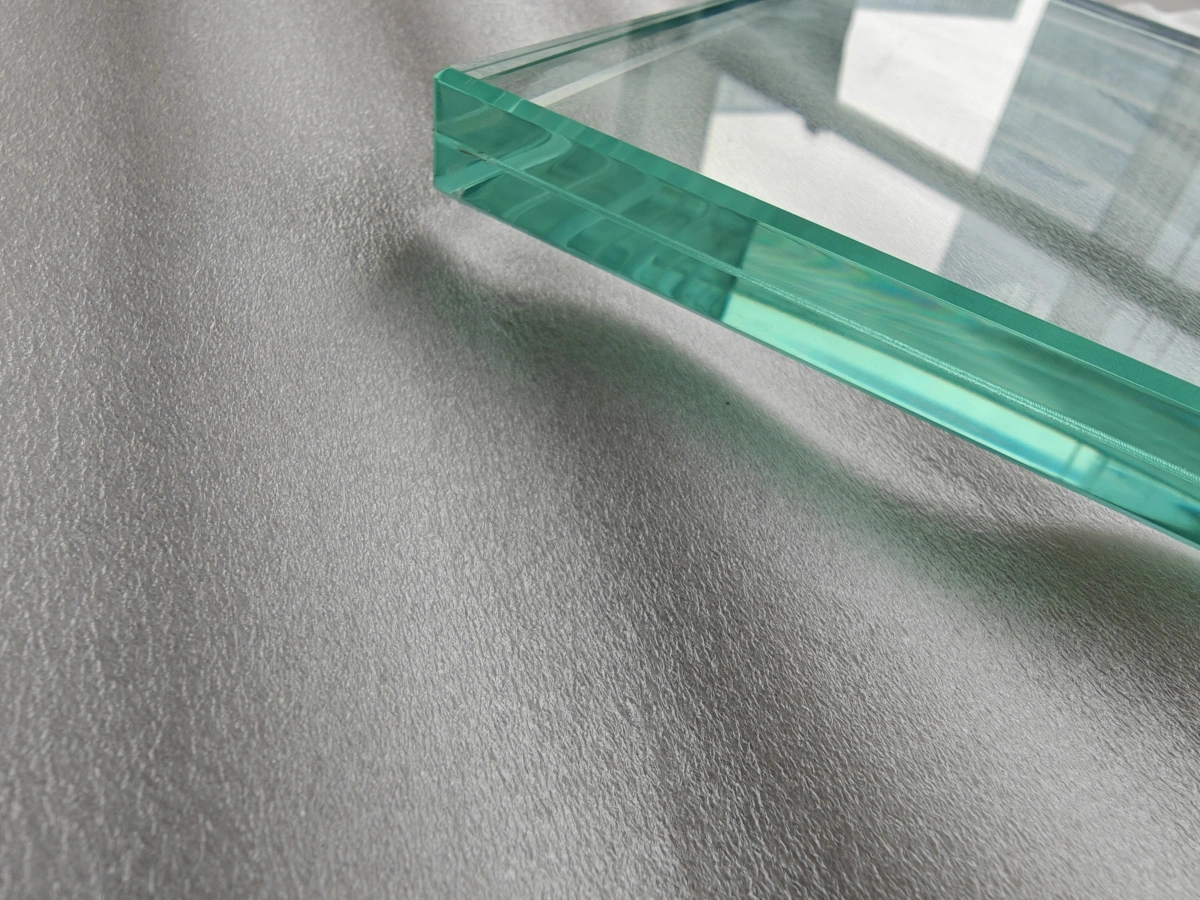

| Edge Options | Seamed / Flat polished / Beveled |
| Standard Sizes | Custom sizes available up to 2440mm × 3660mm |
| Breakage Behavior | Interlayer holds fragments in place for safety |
| Sound Insulation | Excellent acoustic performance with PVB interlayer |
| UV Protection | Blocks up to 99% of harmful UV rays |
| Certifications | ANSI Z97.1, EN ISO 12543, CE, CCC |
| Applications | Windows, partitions, skylights, facades, railings |
| Delivery | Fast shipping from China with secure export packaging |
| Packaging | Wooden crates with protective film and moisture barrier |
Different Types for 6mm Laminated Glass Panel
How Many 6mm Laminated Glass Panel Types From Xpert BM?
Except normal 6.38mm laminated glass sheet, we can also provide other types of laminated glass, such as

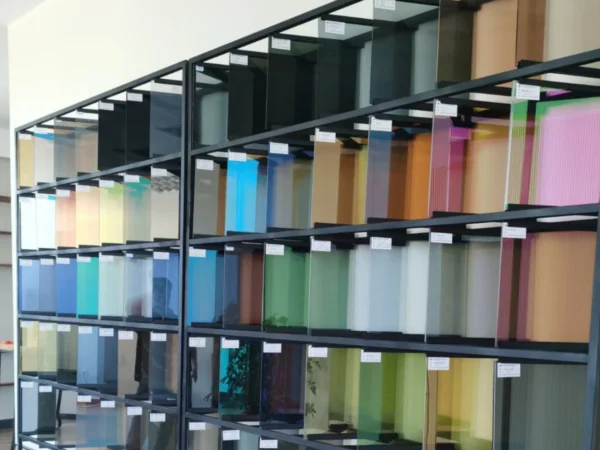

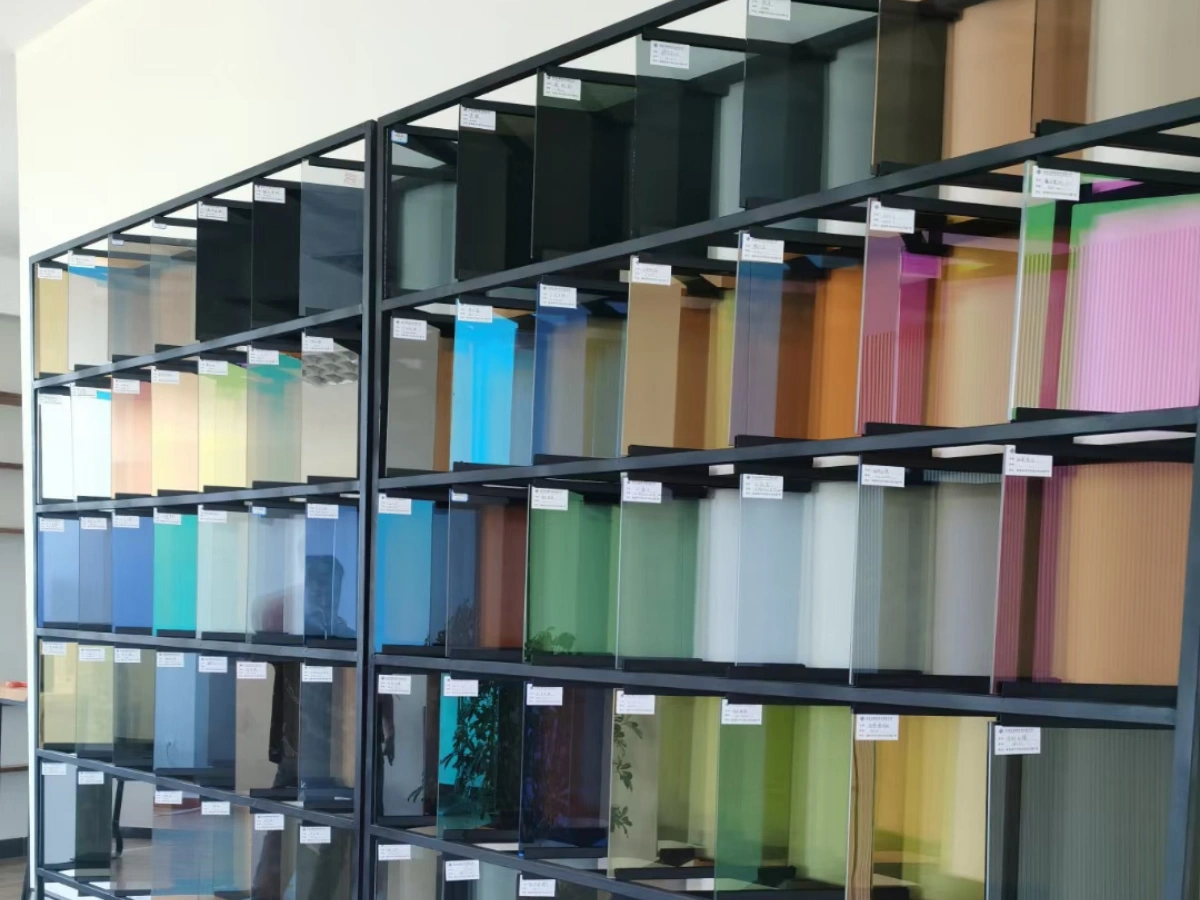

- 6.38mm Tinted Laminated Glass – Available in grey, bronze, blue, green, and other colors for solar control and aesthetic appeal.
- 6.38mm Reflective Laminated Glass – Offers enhanced privacy and solar protection with a mirror-like finish.
- 3+3mm Low-E Laminated Glass – Improves energy efficiency by reducing heat transfer while allowing natural light.

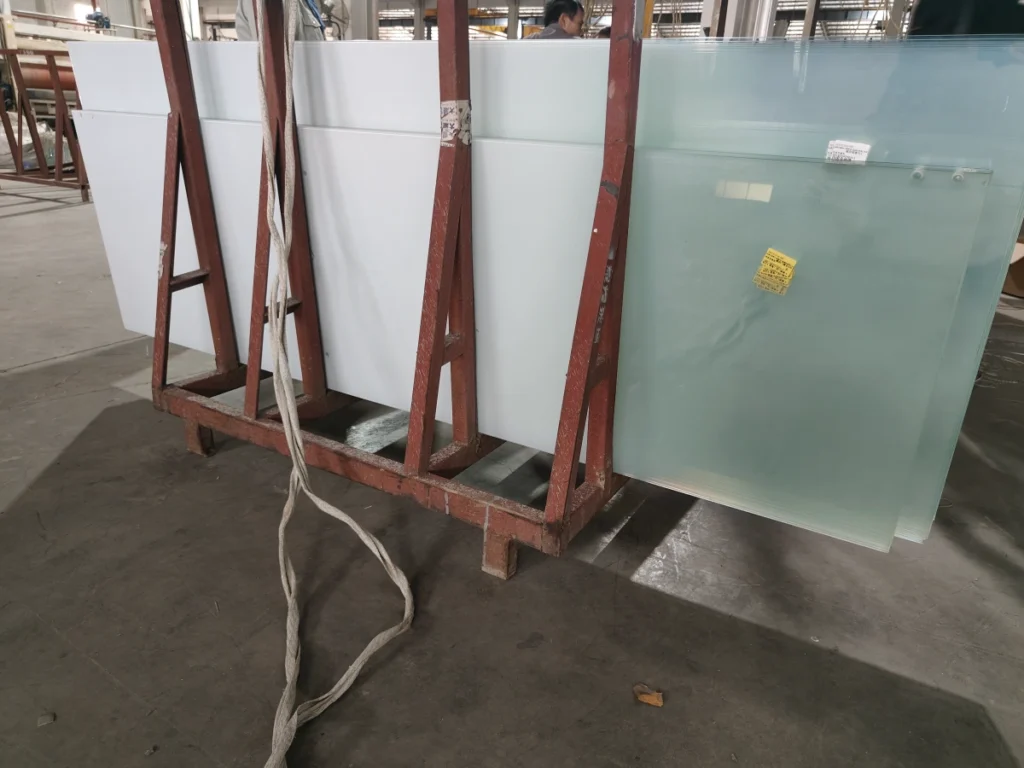

- 6mm Frosted or Acid-Etched Laminated Glass – Provides privacy while maintaining light transmission, ideal for interior partitions.

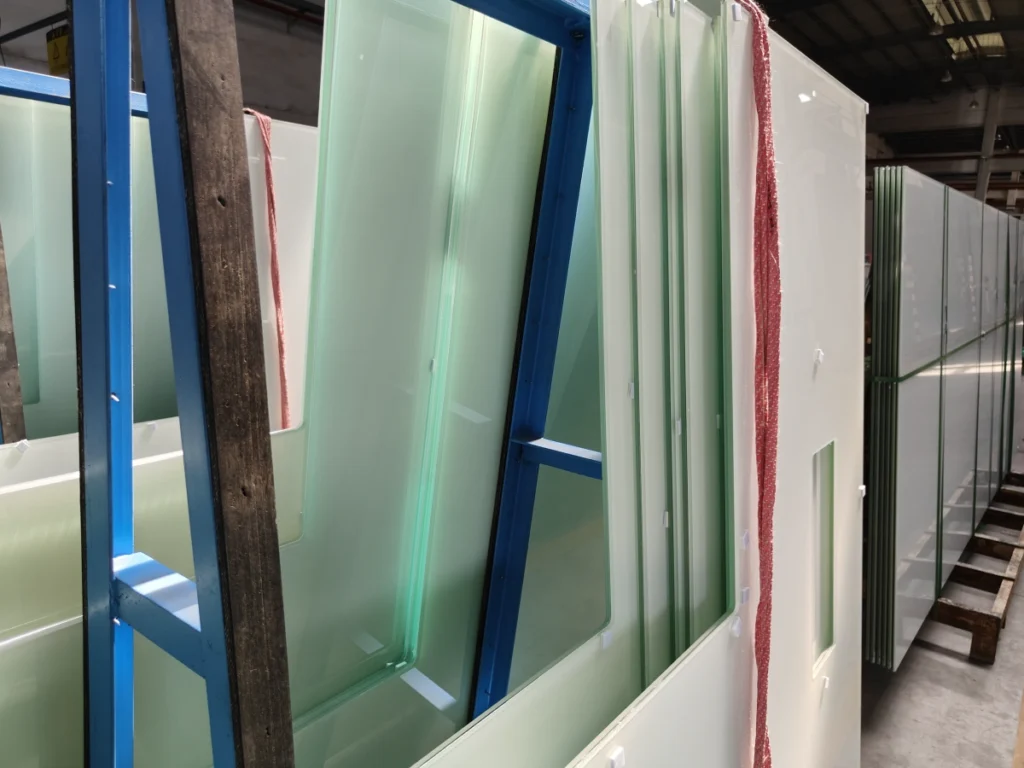

- 1/4 Silk Screen / Printed Laminated Glass – Custom patterns or logos embedded between glass layers, perfect for branding or decorative purposes.
- 6.76mm Coloured PVB Interlayer Glass – Uses colored interlayers to achieve uniform color tones without tinting the glass itself.
- 6.76mm Acoustic Laminated Glass – Designed to reduce noise transmission, ideal for residential, office, or roadside installations.
Packing List Based on Different Size and Thickness
| Thickness | H | W | Pieces | Crates | Squre Meter |
6.38 laminated float glass | 2440 | 1830 | 40 | 10 | 1786.08 |
| 3300 | 2140 | 25 | 10 | 1765.50 | |
| 3300 | 2250 | 24 | 10 | 1782.00 | |
| 3660 | 2140 | 23 | 10 | 1801.45 | |
| 3660 | 2250 | 22 | 10 | 1811.70 | |
| 3660 | 2440 | 20 | 10 | 1786.08 | |
| 8.38 laminated float glass | 2440 | 1830 | 30 | 10 | 1339.56 |
| 3300 | 2140 | 19 | 10 | 1341.78 | |
| 3300 | 2250 | 18 | 10 | 1336.50 | |
| 3660 | 2140 | 17 | 10 | 1331.51 | |
| 3660 | 2440 | 14 | 10 | 1250.26 | |
| 3660 | 2250 | 15 | 10 | 1235.25 | |
| 10.38 laminated float glass | 2440 | 1830 | 24 | 10 | 1071.65 |
| 3300 | 2140 | 15 | 10 | 1059.30 | |
| 3300 | 2250 | 14 | 10 | 1039.50 | |
| 3660 | 2140 | 13 | 10 | 1018.21 | |
| 3660 | 2440 | 12 | 10 | 1071.65 | |

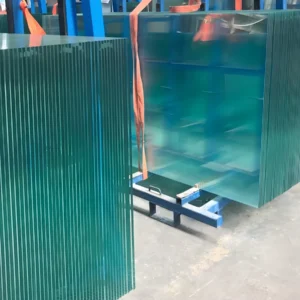

| 12.38 laminated float glass | 2440 | 1830 | 19 | 10 | 848.39 |
| 3300 | 2140 | 12 | 10 | 847.44 | |
| 3300 | 2250 | 12 | 10 | 891.00 | |
| 3660 | 2140 | 11 | 10 | 861.56 | |
| 3660 | 2440 | 10 | 10 | 893.04 | |
| 3660 | 2250 | 10 | 10 | 823.50 | |
| 16.76 laminated float glass | 3300 | 2140 | 8 | 10 | 564.96 |
| 3660 | 2140 | 8 | 10 | 626.59 |
Safety Packing and Loading
Need certified safety and superior performance in every layer?
Our ANSI Z97 6mm Laminated Glass Panels (33.1 / 33.2) deliver outstanding strength, sound insulation, and impact resistance.
Partner with a super supplier today — secure your laminated building glass at unbeatable value and fast turnaround.
FAQs for Order 6.38 6.76 laminated float glass
For a first-time cooperation, we are happy to provide free samples for simple products such as clear tempered glass and clear laminated glass to support our initial collaboration. However, we are unable to cover the shipping costs. We hope both sides can share some of the expenses from a partnership perspective. If this order and project move forward and we work together in the future, these costs can be fully deducted from our formal cooperation.
In general, this is not a problem. Please contact us using the form below, and our team will get in touch with you.
Additionally, please note that our partner suppliers are located in various regions across China, and the glass and aluminum factories in particular are often situated in relatively remote areas. Visiting them in person can be costly overall. If you would like to save time and effort, we can arrange to visit them on your behalf under your company’s name.
Yes, we do offer door-to-door service. We can arrange it according to your location, and the exact cost and lead time will be confirmed based on the destination and shipping method you prefer.
The shipping cost depends on the destination, product type, and shipping method (air, sea, or express).
For large or heavy items like glass, window, door, curtain wall, sea freight is usually the most cost-effective option. While international shipping can be a significant part of the total cost, we always work to find the most economical and efficient solution for our customers and can provide a detailed quotation for your reference.
For tempered glass and standard laminated glass, we generally offer a 5-year warranty. For higher-performance glass, such as insulated glass, Low-E glass, and coated glass, we typically provide a 10-year warranty.
Please note: As glass is inherently fragile, there is always a risk of breakage during transportation. Even for tempered glass, despite our use of high-quality raw glass from XYG, CSG, and PPG, and processing with advanced tempering furnaces from NorthGlass and LandGlass, there is still an approximate 0.2% risk of spontaneous breakage. If any damage occurs, we will do our best to assist you in minimizing the loss.
Of course. Xpert BM was founded with the mission of helping all our clients solve their challenges. Our primary customers are individuals small and medium contractors, and we are always happy to listen to their ideas. Our professional team will carefully consider their needs and provide the most suitable advice and recommendations.
